TPS2223DBG4

TPS2223DBG4

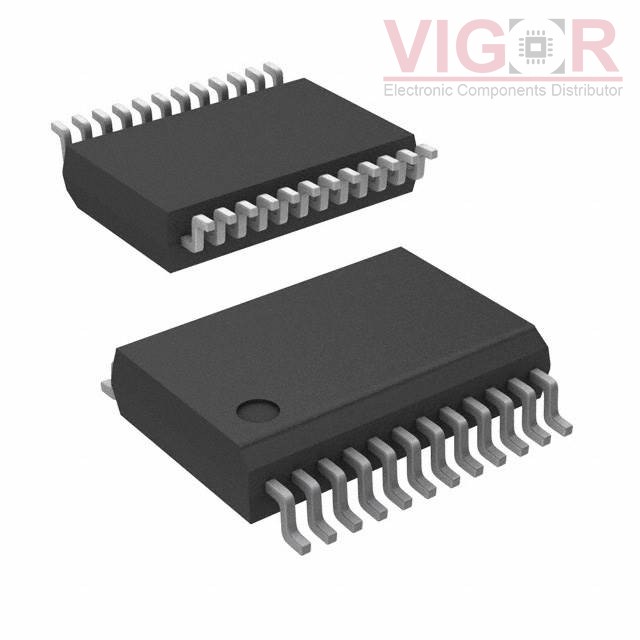

Image is for reference,
please contact us to get the real picture

Part No :

TPS2223DBG4

Manufacturer
Texas Instruments
Description
IC PWR SWITCH 3:4 24SSOP
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
TPS2223DBG4 PDF
Availability
4510 pieces
Unit Price
$4.23528

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of TPS2223DBG4 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

TPS2223DBG4 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Type:PCMCIA Switch
Number of Outputs:4
Ratio - Input:Output:3:4
Output Configuration:High Side
Output Type:-
Interface:Serial
Voltage - Load:3.3V, 5V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):1A
Rds On (Typ):95mOhm
Input Type:-
Features:Status Flag
Fault Protection:Current Limiting (Fixed), Over Temperature
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:24-SSOP
Package / Case:24-SSOP (0.209", 5.30mm Width)
