MC20XS4200FKR2

MC20XS4200FKR2

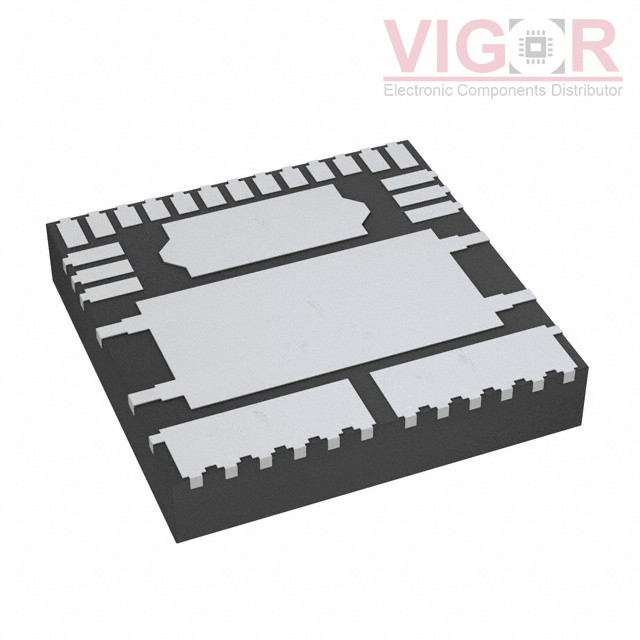

Image is for reference,
please contact us to get the real picture

Part No :

MC20XS4200FKR2

Manufacturer
NXP Semiconductors
Description
IC PWR SWITCH N-CHAN 1:1 23PQFN
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
MC20XS4200FKR2 PDF
Availability
1427 pieces
Unit Price
$10.12000

Current price of MC20XS4200FKR2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MC20XS4200FKR2 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Last Time Buy
Switch Type:General Purpose
Number of Outputs:2
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:SPI
Voltage - Load:8V ~ 36V
Voltage - Supply (Vcc/Vdd):3V ~ 5.5V
Current - Output (Max):3A
Rds On (Typ):20mOhm (Max)
Input Type:-
Features:Internal PWM, Slew Rate Controlled, Watchdog Timer
Fault Protection:Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:23-PQFN (12x12)
Package / Case:23-PowerQFN
