AP22814BW5-7

AP22814BW5-7

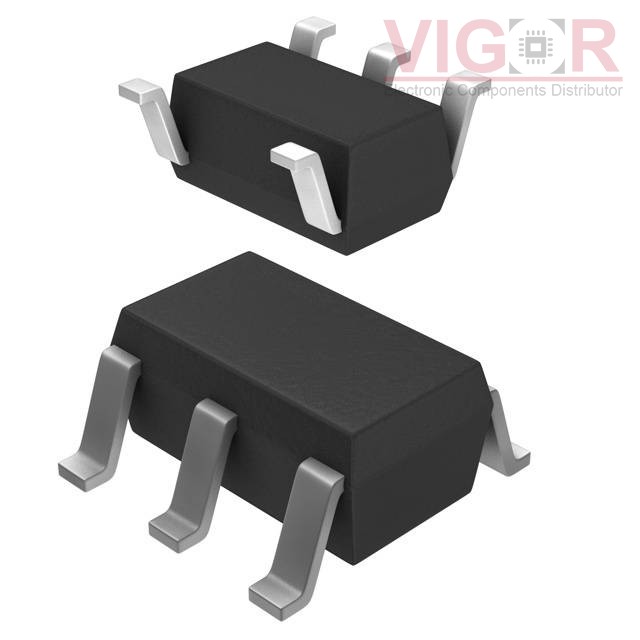

Image is for reference,
please contact us to get the real picture

Part No :

AP22814BW5-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC PWR SWITCH P-CHAN 1:1 SOT25
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AP22814BW5-7 PDF
Availability
5234 pieces
Unit Price
$0.27666

Current price of AP22814BW5-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP22814BW5-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Switch Type:USB Switch
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):3A
Rds On (Typ):50mOhm
Input Type:Non-Inverting
Features:Load Discharge, Status Flag
Fault Protection:Current Limiting (Fixed), Over Temperature, UVLO
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:SOT-25
Package / Case:SC-74A, SOT-753
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
