BTS70122EPAXUMA1

BTS70122EPAXUMA1

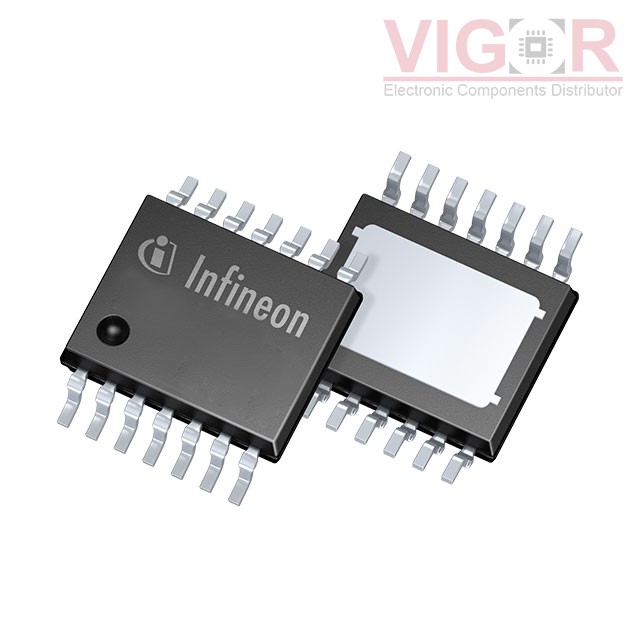

Image is for reference,
please contact us to get the real picture

Part No :

BTS70122EPAXUMA1

Manufacturer
IR (Infineon Technologies)
Description
IC PWR SWTCH N-CHAN 1:1 TSDSO-14
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
BTS70122EPAXUMA1 PDF
Availability
6264 pieces
Unit Price
$3.05000

Current price of BTS70122EPAXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTS70122EPAXUMA1 Specifications
Type Description
Series:Automotive, AEC-Q100, PROFET®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Type:General Purpose
Number of Outputs:2
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:3.1V ~ 28V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):6A
Rds On (Typ):11.5mOhm
Input Type:Non-Inverting
Features:Slew Rate Controlled
Fault Protection:Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-TSDSO-14-22
Package / Case:14-TSSOP (0.154", 3.90mm Width) Exposed Pad
