NCV47722PAAJR2G

NCV47722PAAJR2G

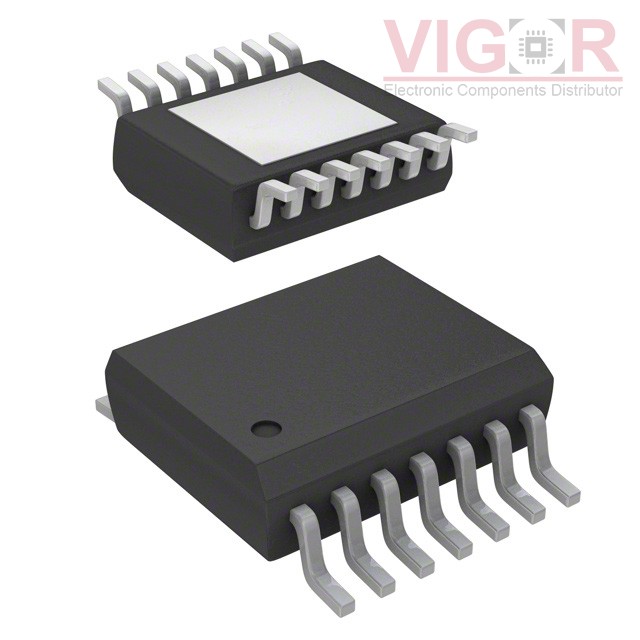

Image is for reference,
please contact us to get the real picture

Part No :

NCV47722PAAJR2G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC PWR SWTCH BIPOLAR 1:1 14TSSOP
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
NCV47722PAAJR2G PDF
Availability
330 pieces
Unit Price
$1.26000

Current price of NCV47722PAAJR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCV47722PAAJR2G Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Type:General Purpose
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:Bipolar
Interface:On/Off
Voltage - Load:4.4V ~ 40V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):250mA
Rds On (Typ):-
Input Type:Non-Inverting
Features:Status Flag
Fault Protection:Current Limiting (Adjustable), Over Temperature
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:14-TSSOP-EP
Package / Case:14-TSSOP (0.173", 4.40mm Width) Exposed Pad
