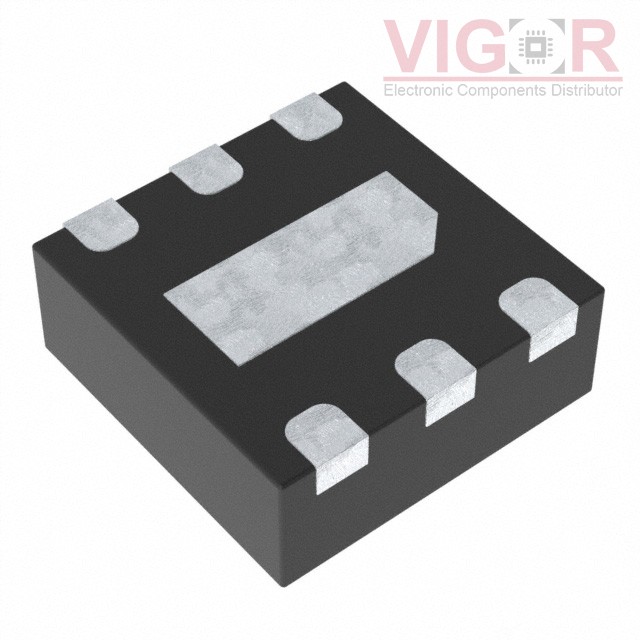

AP22652FDZ-7

AP22652FDZ-7

Image is for reference,
please contact us to get the real picture

Part No :

AP22652FDZ-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
LOAD SWITCH,W-DFN2020-6,T&R,3K
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
AP22652FDZ-7 PDF
Availability
1500 pieces
Unit Price
$0.46000

Current price of AP22652FDZ-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP22652FDZ-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Type:General Purpose
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:3V ~ 5.5V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):2.1A
Rds On (Typ):65mOhm
Input Type:Non-Inverting
Features:Load Discharge, Slew Rate Controlled, Status Flag
Fault Protection:Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:W-DFN2020-6 (Type A1)
Package / Case:6-WDFN Exposed Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TPS2231PWPG4

TPS2231PWPG4

POWER SUPPLY CIRCUIT, FIXED
HOT MP62181DH-LF-P

MP62181DH-LF-P

IC PWR SWITCH 1:1 8MSOP

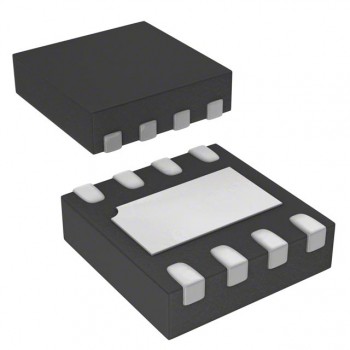

HOT AP2182AFGEG-7
