PI5PD2561ZEEX

PI5PD2561ZEEX

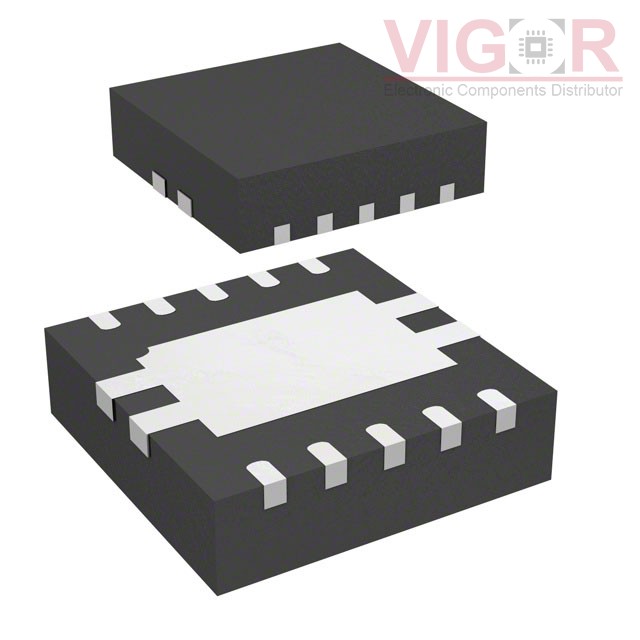

Image is for reference,
please contact us to get the real picture

Part No :

PI5PD2561ZEEX

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC PWR SWITCH N/P-CH 1:2 10TDFN
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
PI5PD2561ZEEX PDF
Availability
161 pieces
Unit Price
$0.00000

Current price of PI5PD2561ZEEX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PI5PD2561ZEEX Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Switch Type:USB Switch
Number of Outputs:2
Ratio - Input:Output:1:2
Output Configuration:High Side
Output Type:N/P-Channel
Interface:On/Off
Voltage - Load:2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd):2.5V ~ 5.5V
Current - Output (Max):2.5A
Rds On (Typ):44mOhm
Input Type:Non-Inverting
Features:Status Flag
Fault Protection:Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:10-TDFN (3x3)
Package / Case:10-VFDFN Exposed Pad
