XC9301A253MR-G

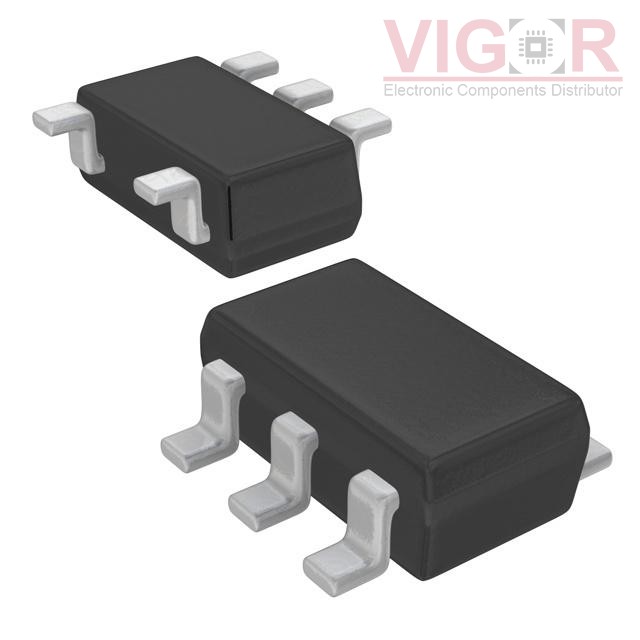

Image is for reference,
please contact us to get the real picture

Part No :: XC9301A253MR-G

Manufacturer: Torex Semiconductor Ltd.

Description: STEP-UP & STEP-DOWN 300KHZ DCDC

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: XC9301A253MR-G PDF

Availability: 8000 pieces

Unit Price: ~~$0.55650~~

Current price of XC9301A253MR-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XC9301A253MR-G Specifications

Type	Description
Series:	XC9301
Package:	Tape & Reel (TR)
Part Status:	Active
Output Type:	PWM
Function:	Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck-Boost
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	2V ~ 10V
Frequency - Switching:	300kHz
Duty Cycle (Max):	92%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Enable
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	SOT-25

Please confirm the specifications of the products when ordering.
