LTC7821EUH#TRPBF

LTC7821EUH#TRPBF

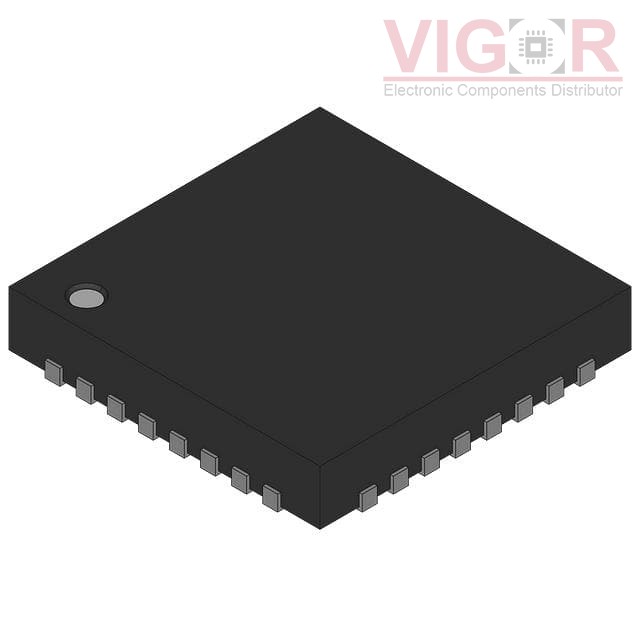

Image is for reference,
please contact us to get the real picture

Part No :

LTC7821EUH#TRPBF

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC REG CTRLR BUCK HYBRID 32QFN
Catalog
PMIC - Voltage Regulators - DC DC Switching Controllers
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
LTC7821EUH#TRPBF PDF
Availability
2261 pieces
Unit Price
$7.50000

Current price of LTC7821EUH#TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTC7821EUH#TRPBF Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Type:Transistor Driver
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Number of Outputs:1
Output Phases:2
Voltage - Supply (Vcc/Vdd):10V ~ 72V
Frequency - Switching:200kHz ~ 1.5MHz
Duty Cycle (Max):40%
Synchronous Rectifier:No
Clock Sync:No
Serial Interfaces:-
Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:32-WFQFN Exposed Pad
Supplier Device Package:32-QFN (5x5)
