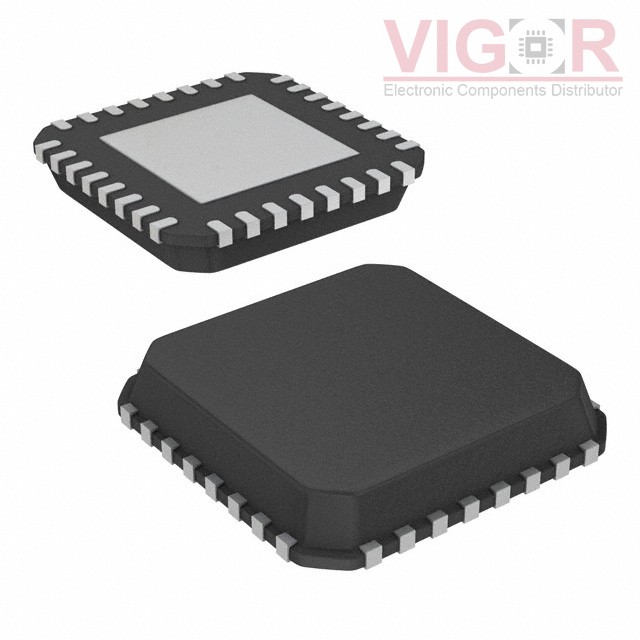

ZL2004ALNN

ZL2004ALNN

Image is for reference,
please contact us to get the real picture

Part No :

ZL2004ALNN

Manufacturer
Intersil (Renesas Electronics America)
Description
IC REG CTRLR BUCK PMBUS 32QFN
Catalog
PMIC - Voltage Regulators - DC DC Switching Controllers
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
ZL2004ALNN PDF
Availability
1687 pieces
Unit Price
$0.00000

Current price of ZL2004ALNN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ZL2004ALNN Specifications
Type Description
Series:-
Package:Tray
Part Status:Obsolete
Output Type:PWM Signal
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):4.5V ~ 14V
Frequency - Switching:200kHz ~ 1.4MHz
Duty Cycle (Max):95%
Synchronous Rectifier:-
Clock Sync:Yes
Serial Interfaces:I²C, PMBus, SMBus
Control Features:Current Limit, Enable, Power Good, Soft Start, Tracking
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:32-VFQFN Exposed Pad
Supplier Device Package:32-QFN (5x5)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ISL6522IR

ISL6522IR

IC REG CTRLR BUCK 16QFN
HOT ISL6745AU

ISL6745AU

IC REG CTRLR MULT TOP 10MSOP

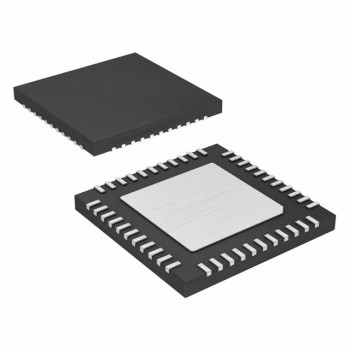

HOT MAX5067ETH+
