LTC3569EUD#PBF

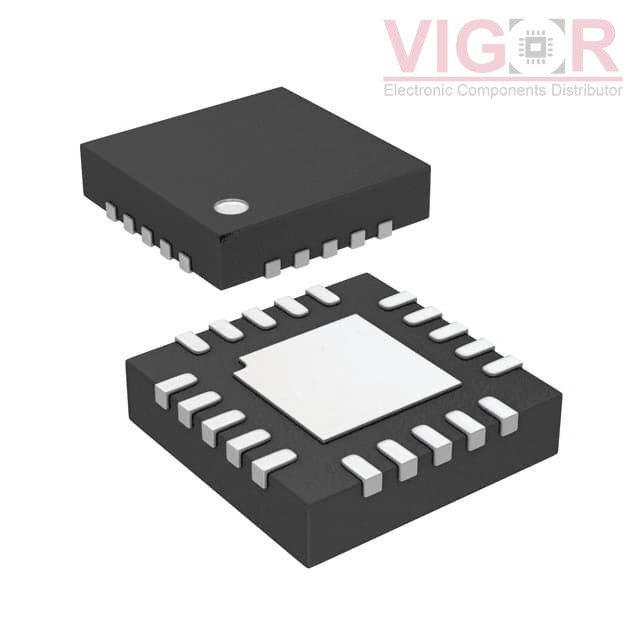

Image is for reference,
please contact us to get the real picture

Part No :: LTC3569EUD#PBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC REG BUCK ADJ TRPL 20QFN

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

Shipped from: HK warehouse

Expected Shipping Date: Aug 17 - Aug 21 2025

DataSheet: LTC3569EUD#PBF PDF

Availability: 1836 pieces

Unit Price: ~~$7.44000~~

Current price of LTC3569EUD#PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTC3569EUD#PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	3
Voltage - Input (Min):	2.5V
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	0.425V
Voltage - Output (Max):	5.5V
Current - Output:	600mA, 1.2A
Frequency - Switching:	2.25MHz, 1MHz ~ 3MHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	20-WFQFN Exposed Pad
Supplier Device Package:	20-QFN (3x3)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

TPS54319RTER

IC REG BUCK ADJUSTABLE 3A 16WQFN

HOT

XC9141E37DMR-G

0.8A SYNCHRONOUS STEP-UP DC/DC C

HOT

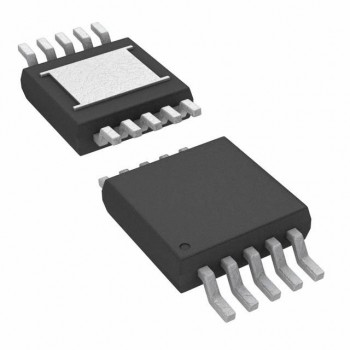

LTC3255MPMSE#TRPBF
