LT8315HFE#TRPBF

LT8315HFE#TRPBF

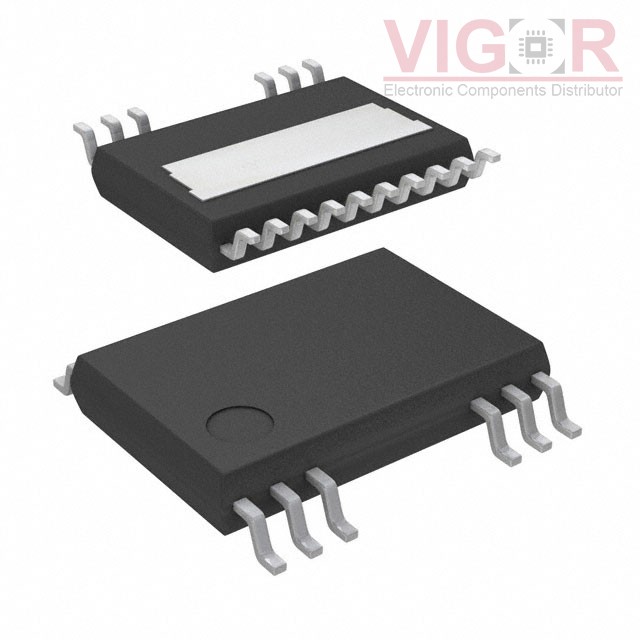

Image is for reference,
please contact us to get the real picture

Part No :

LT8315HFE#TRPBF

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC REG FLYBACK 800MA 20TSSOP
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
LT8315HFE#TRPBF PDF
Availability
1389 pieces
Unit Price
$6.85500

Current price of LT8315HFE#TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LT8315HFE#TRPBF Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Function:Step-Down, Step-Up/Step-Down
Output Configuration:Positive, Isolation Capable
Topology:Flyback
Output Type:Fixed
Number of Outputs:1
Voltage - Input (Min):18V
Voltage - Input (Max):560V
Voltage - Output (Min/Fixed):-
Voltage - Output (Max):-
Current - Output:800mA
Frequency - Switching:220Hz ~ 140kHz
Synchronous Rectifier:No
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad
Supplier Device Package:20-TSSOP-EP
