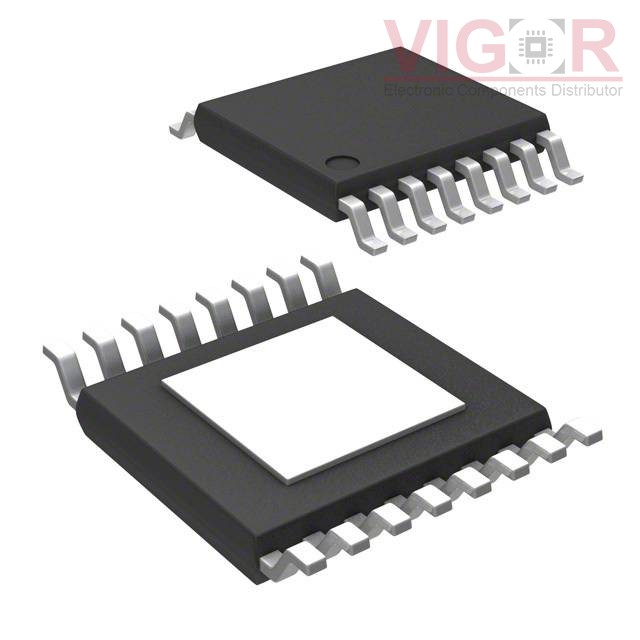

LM2696MXAX/NOPB

Image is for reference,
please contact us to get the real picture

Part No :: LM2696MXAX/NOPB

Manufacturer: Texas Instruments

Description: IC REG BUCK ADJ 3A 16HTSSOP

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: LM2696MXAX/NOPB PDF

Availability: 841 pieces

Unit Price: ~~$4.20000~~

Current price of LM2696MXAX/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LM2696MXAX/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	24V
Voltage - Output (Min/Fixed):	1.254V
Voltage - Output (Max):	20V
Current - Output:	3A
Frequency - Switching:	100kHz ~ 500kHz
Synchronous Rectifier:	No
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	16-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-HTSSOP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LTC3621HMS8E-25#TRPBF

IC REG BUCK 5V 1A 8MSOP

HOT

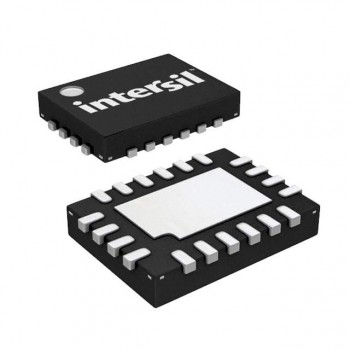

ISL91107IRTNZ-T7A

IC REG BCK BST 3.3V 2A 20TQFN

HOT

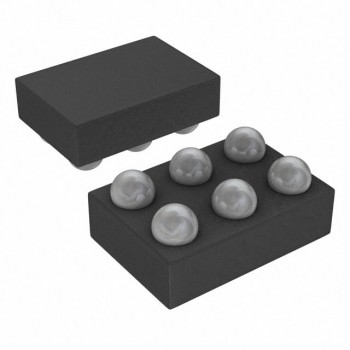

MAX38641AENT+
