ADP2114ACPZ-R7

ADP2114ACPZ-R7

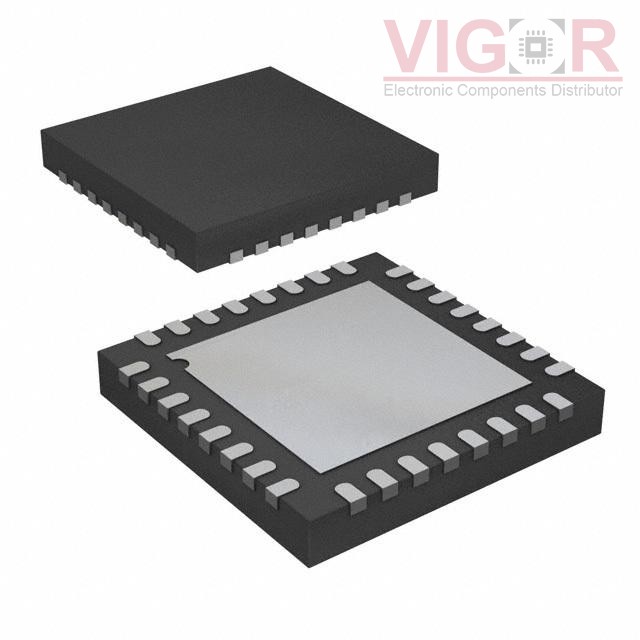

Image is for reference,
please contact us to get the real picture

Part No :

ADP2114ACPZ-R7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC REG BCK ADJ/PRG SGL/DL 32CSP
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
ADP2114ACPZ-R7 PDF
Availability
5868 pieces
Unit Price
$5.45000

Current price of ADP2114ACPZ-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADP2114ACPZ-R7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Output Type:Adjustable (Programmable)
Number of Outputs:1 or 2
Voltage - Input (Min):2.75V
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):0.6V (0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V)
Voltage - Output (Max):5.5V
Current - Output:4A, 2A
Frequency - Switching:300kHz, 600kHz, 1.2MHz
Synchronous Rectifier:Yes
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:32-WFQFN Exposed Pad, CSP
Supplier Device Package:32-LFCSP-WQ (5x5)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
