R1286K103M-TR

R1286K103M-TR

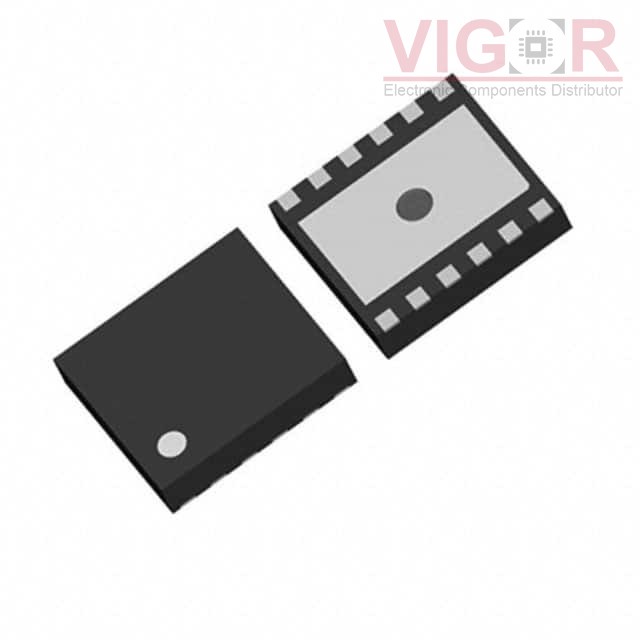

Image is for reference,
please contact us to get the real picture

Part No :

R1286K103M-TR

Manufacturer
RICOH Electronic Devices Co., LTD.
Description
PWM STEP-UP/INVERTING DCDC CONVE
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
R1286K103M-TR PDF
Availability
2690 pieces
Unit Price
$1.14000

Current price of R1286K103M-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

R1286K103M-TR Specifications
Type Description
Series:R1286K
Package:Tape & Reel (TR)
Part Status:Active
Function:Step-Up/Inverted
Output Configuration:Positive and Negative
Topology:Buck, Boost
Output Type:Adjustable
Number of Outputs:2
Voltage - Input (Min):2.3V
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):-6V
Voltage - Output (Max):5.8V
Current - Output:300mA
Frequency - Switching:1.75MHz
Synchronous Rectifier:Yes
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:12-UFDFN Exposed Pad
Supplier Device Package:DFN(PLP)2730-12
