TPS54560DDA

TPS54560DDA

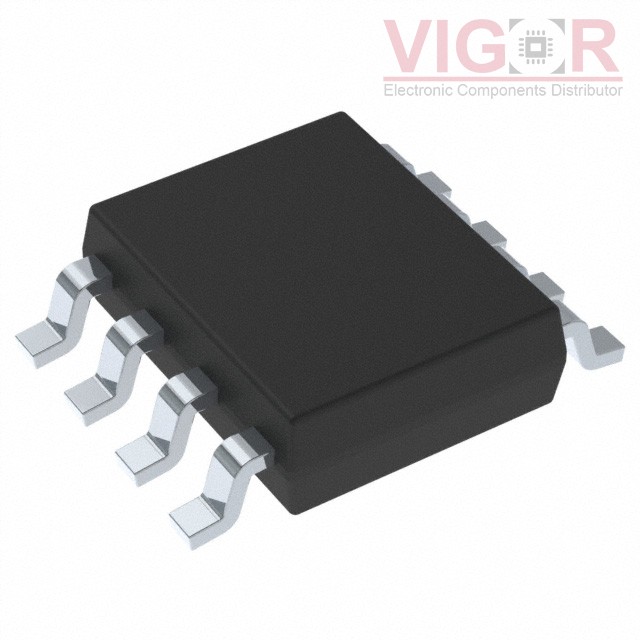

Image is for reference,
please contact us to get the real picture

Part No :

TPS54560DDA

Manufacturer
Texas Instruments
Description
IC REG BCK SPLIT RAIL ADJ 8SOPWR
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
TPS54560DDA PDF
Availability
120000 pieces
Unit Price
$7.01000

Current price of TPS54560DDA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPS54560DDA Specifications
Type Description
Series:Eco-Mode™
Package:Tube
Part Status:Not For New Designs
Function:Step-Down
Output Configuration:Positive
Topology:Buck, Split Rail
Output Type:Adjustable
Number of Outputs:1
Voltage - Input (Min):4.5V
Voltage - Input (Max):60V
Voltage - Output (Min/Fixed):0.8V
Voltage - Output (Max):58.8V
Current - Output:5A
Frequency - Switching:100kHz ~ 2.5MHz
Synchronous Rectifier:No
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SO PowerPad
