PAM2322AGEAR-7

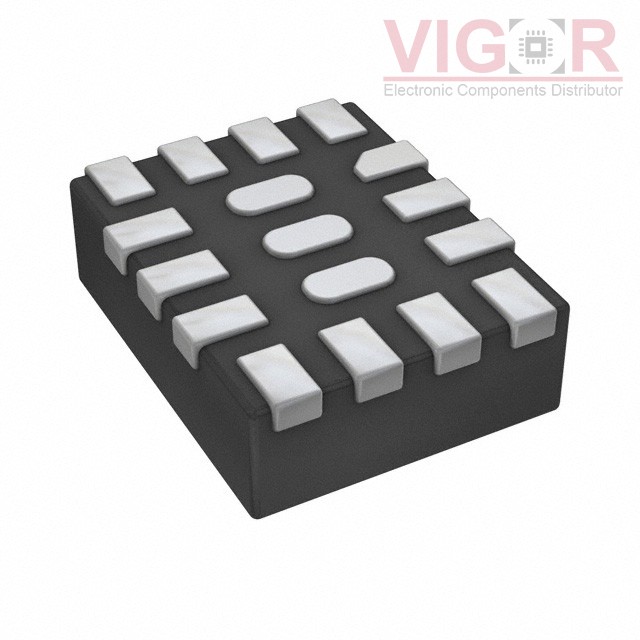

Image is for reference,
please contact us to get the real picture

Part No :: PAM2322AGEAR-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IC REG BUCK SMD

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: PAM2322AGEAR-7 PDF

Availability: 788 pieces

Unit Price: ~~$0.00000~~

Current price of PAM2322AGEAR-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PAM2322AGEAR-7 Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Obsolete
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable (Fixed)
Number of Outputs:	2
Voltage - Input (Min):	2.7V
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	0.9V (1.8V)
Voltage - Output (Max):	5.5V
Current - Output:	1A, 2A
Frequency - Switching:	1.2MHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	17-WFLGA
Supplier Device Package:	W-FLGA2520-17

Please confirm the specifications of the products when ordering.
