PI3749-20-LGIZ

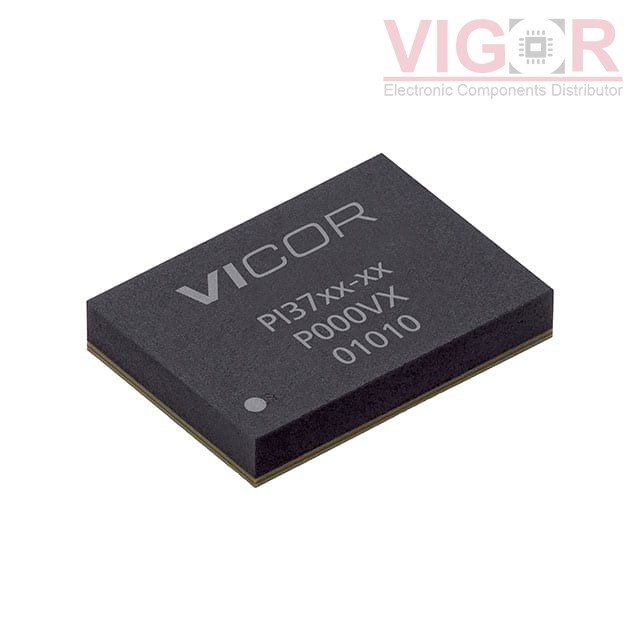

Image is for reference,
please contact us to get the real picture

Part No :: PI3749-20-LGIZ

Manufacturer: Vicor

Description: DC DC CONVERTER 12-34V

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: PI3749-20-LGIZ PDF

Availability: 304 pieces

Unit Price: ~~$0.00000~~

Current price of PI3749-20-LGIZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PI3749-20-LGIZ Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Obsolete
Function:	Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck-Boost
Output Type:	Adjustable
Number of Outputs:	1
Voltage - Input (Min):	16V
Voltage - Input (Max):	34V
Voltage - Output (Min/Fixed):	12V
Voltage - Output (Max):	28V
Current - Output:	10A
Frequency - Switching:	800kHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 115°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	108-BLGA Module
Supplier Device Package:	108-LGA (14x10)

Please confirm the specifications of the products when ordering.
