LM5002SD

LM5002SD

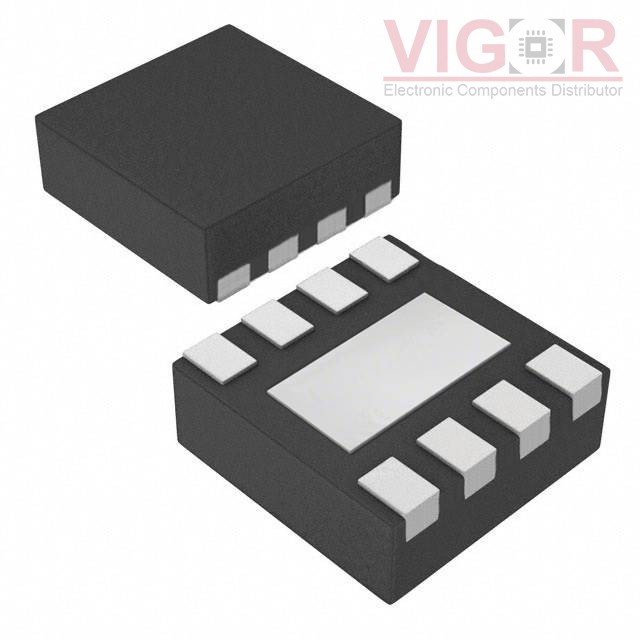

Image is for reference,
please contact us to get the real picture

Part No :

LM5002SD

Manufacturer
Texas Instruments
Description
IC REG MULTI CONFG ADJ 8WSON
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
LM5002SD PDF
Availability
4880 pieces
Unit Price
$0.00000

Current price of LM5002SD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LM5002SD Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Function:Step-Up, Step-Up/Step-Down
Output Configuration:Positive, Isolation Capable
Topology:Boost, Flyback, Forward Converter, SEPIC
Output Type:Adjustable
Number of Outputs:1
Voltage - Input (Min):3.1V
Voltage - Input (Max):75V
Voltage - Output (Min/Fixed):3.1V
Voltage - Output (Max):76V (Switch)
Current - Output:400mA (Switch)
Frequency - Switching:50kHz ~ 1.5MHz
Synchronous Rectifier:No
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-WDFN Exposed Pad
Supplier Device Package:8-WSON (4x4)
