LDK320AM15R

LDK320AM15R

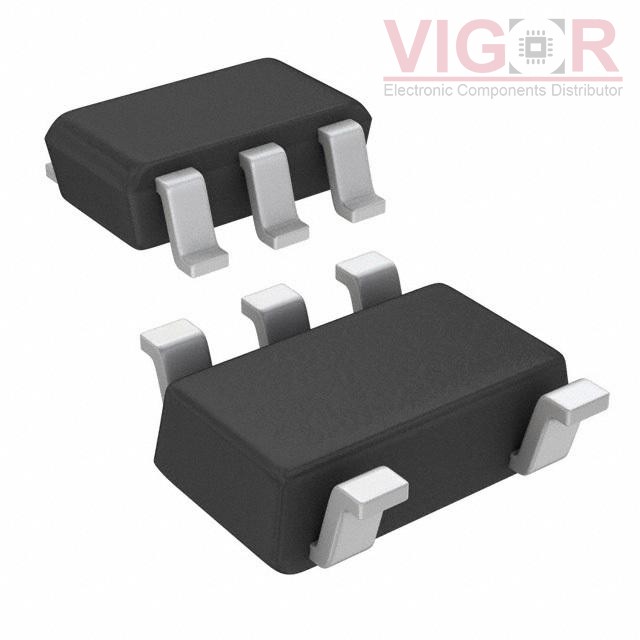

Image is for reference,
please contact us to get the real picture

Part No :

LDK320AM15R

Manufacturer
STMicroelectronics
Description
IC REG LINEAR 1.5V 200MA SOT23-5
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
LDK320AM15R PDF
Availability
1768 pieces
Unit Price
$0.81000

Current price of LDK320AM15R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LDK320AM15R Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):18V
Voltage - Output (Min/Fixed):1.5V
Voltage - Output (Max):-
Voltage Dropout (Max):0.35V @ 200mA
Current - Output:200mA
Current - Quiescent (Iq):90 µA
Current - Supply (Max):100 µA
PSRR:88dB ~ 48dB (120Hz ~ 10kHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:SOT-23-5
