ADP1755ACPZ-R7

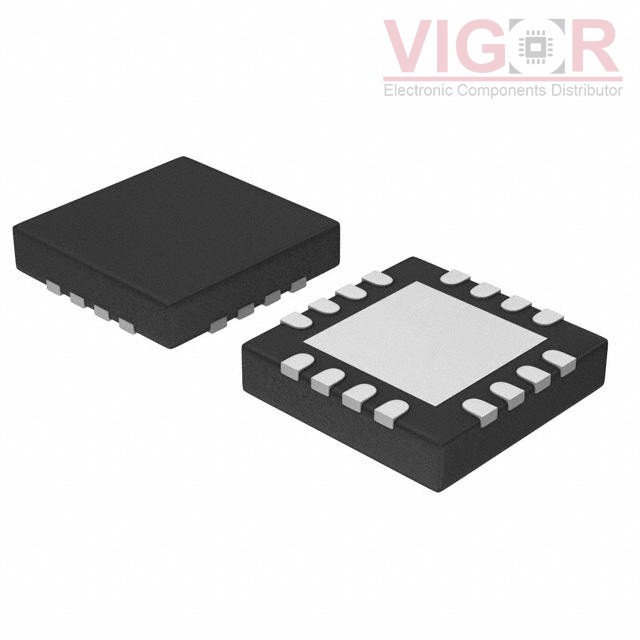

Image is for reference,
please contact us to get the real picture

Part No :

ADP1755ACPZ-R7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC REG LIN POS ADJ 1.2A 16LFCSP
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
ADP1755ACPZ-R7 PDF
Availability
10317 pieces
Unit Price
$3.06000

Current price of ADP1755ACPZ-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):3.6V
Voltage - Output (Min/Fixed):0.75V
Voltage - Output (Max):3.3V
Voltage Dropout (Max):0.2V @ 1.2A
Current - Output:1.2A
Current - Quiescent (Iq):800 µA
Current - Supply (Max):1.4 mA
PSRR:65dB ~ 51dB (1kHz ~ 100kHz)
Control Features:Enable, Power Good, Soft Start
Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-WQFN Exposed Pad, CSP
Supplier Device Package:16-LFCSP-WQ (4x4)
