LT3094IMSE#PBF

LT3094IMSE#PBF

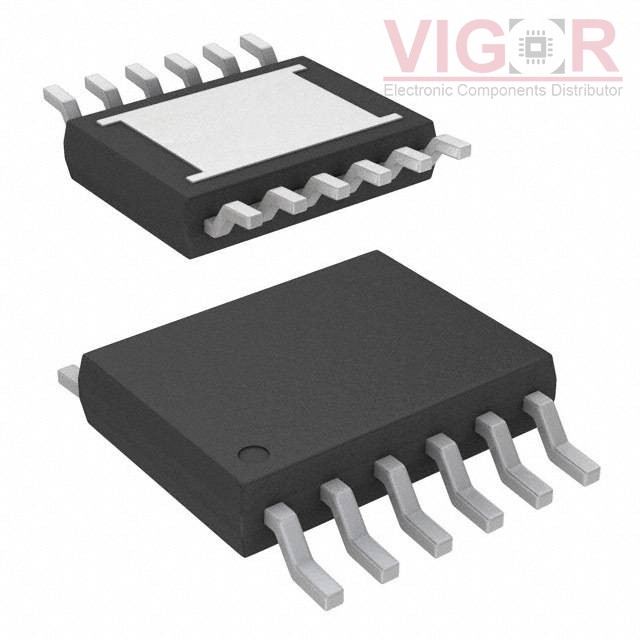

Image is for reference,
please contact us to get the real picture

Part No :

LT3094IMSE#PBF

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC REG LIN NEG ADJ 500MA 12MSOP
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
LT3094IMSE#PBF PDF
Availability
412 pieces
Unit Price
$7.80000

Current price of LT3094IMSE#PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LT3094IMSE#PBF Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Negative
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):-2.3V
Voltage - Output (Min/Fixed):-19.5V
Voltage - Output (Max):0V
Voltage Dropout (Max):0.41V @ 500mA
Current - Output:500mA
Current - Quiescent (Iq):2.35 mA
Current - Supply (Max):23 mA
PSRR:108dB ~ 28dB (120Hz ~ 10MHz)
Control Features:Enable, Power Good, Soft Start
Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package:12-MSOP-EP
