NCP5504DTRKG

NCP5504DTRKG

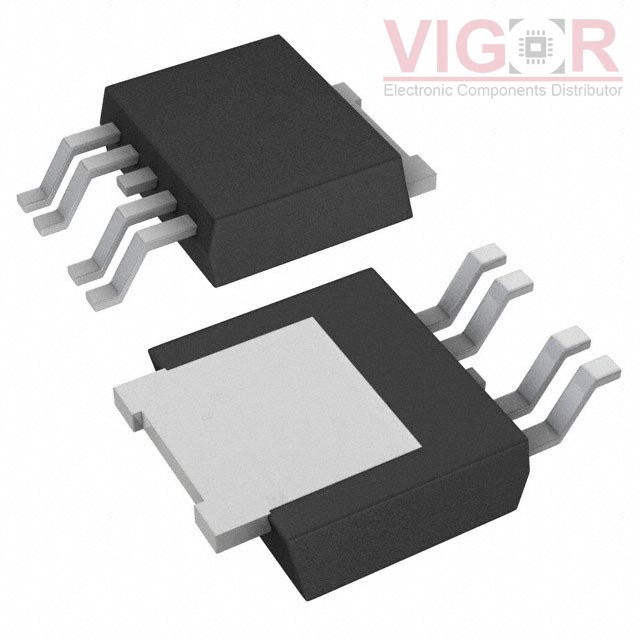

Image is for reference,
please contact us to get the real picture

Part No :

NCP5504DTRKG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC REG LINEAR POS ADJ DPAK-5
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
NCP5504DTRKG PDF
Availability
319 pieces
Unit Price
$0.98000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of NCP5504DTRKG is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

NCP5504DTRKG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Positive
Output Type:Adjustable (Fixed)
Number of Regulators:2
Voltage - Input (Max):18V
Voltage - Output (Min/Fixed):1.25V (3.3V)
Voltage - Output (Max):5V
Voltage Dropout (Max):0.4V @ 250mA, 0.4V @ 250mA
Current - Output:250mA, 250mA
Current - Quiescent (Iq):450 µA
Current - Supply (Max):20 mA
PSRR:75dB ~ 60dB (120Hz ~ 1kHz)
Control Features:-
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:-25°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package:DPAK-5
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
