TPS76801QPWPRG4

TPS76801QPWPRG4

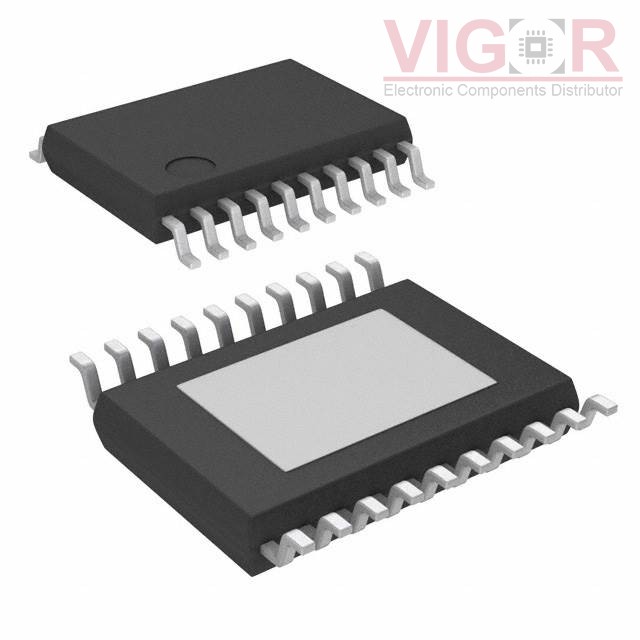

Image is for reference,
please contact us to get the real picture

Part No :

TPS76801QPWPRG4

Manufacturer
Texas Instruments
Description
IC REG LIN POS ADJ 1A 20HTSSOP
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
TPS76801QPWPRG4 PDF
Availability
5000 pieces
Unit Price
$1.75517

Current price of TPS76801QPWPRG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPS76801QPWPRG4 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):10V
Voltage - Output (Min/Fixed):1.2V
Voltage - Output (Max):5.5V
Voltage Dropout (Max):-
Current - Output:1A
Current - Quiescent (Iq):125 µA
Current - Supply (Max):-
PSRR:60dB (1kHz)
Control Features:Enable, Power Good
Protection Features:Over Current, Over Temperature, Reverse Polarity
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:20-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package:20-HTSSOP
