TPS72301DDCT

TPS72301DDCT

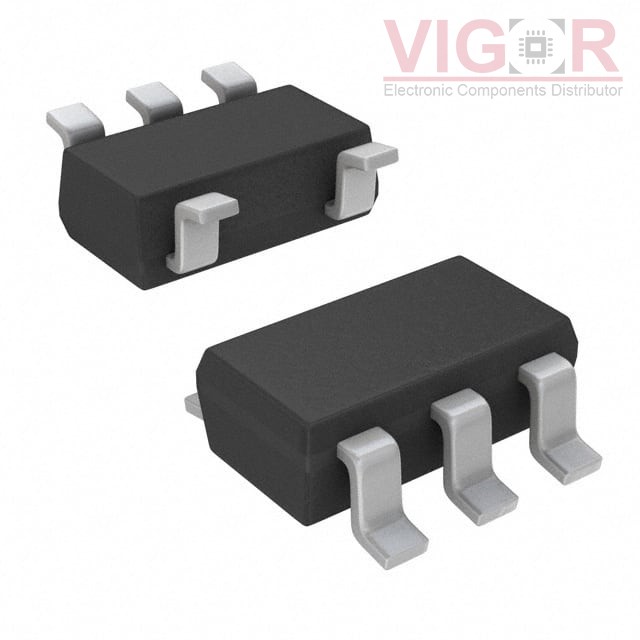

Image is for reference,
please contact us to get the real picture

Part No :

TPS72301DDCT

Manufacturer
Texas Instruments
Description
IC REG LIN NEG ADJ 200MA SOT23-5
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
TPS72301DDCT PDF
Availability
123 pieces
Unit Price
$2.99000

Current price of TPS72301DDCT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPS72301DDCT Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Negative
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):-10V
Voltage - Output (Min/Fixed):-1.2V
Voltage - Output (Max):-10V
Voltage Dropout (Max):0.5V @ 200mA
Current - Output:200mA
Current - Quiescent (Iq):200 µA
Current - Supply (Max):500 µA
PSRR:65dB ~ 48dB (1kHz ~ 10kHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:SOT-23-5 Thin, TSOT-23-5
Supplier Device Package:SOT-23-5
