TS7809CZ C0G

TS7809CZ C0G

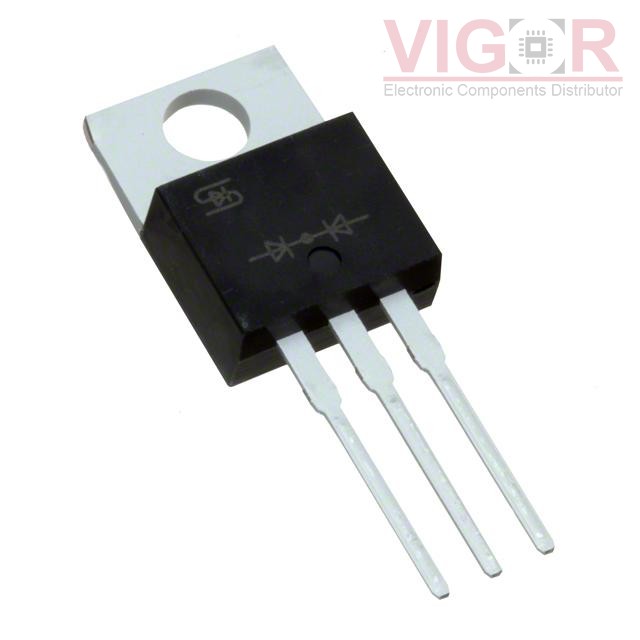

Image is for reference,
please contact us to get the real picture

Part No :

TS7809CZ C0G

Manufacturer
TSC (Taiwan Semiconductor)
Description
IC REG LINEAR 9V 1A TO220
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
TS7809CZ C0G PDF
Availability
1967 pieces
Unit Price
$0.34014

Current price of TS7809CZ C0G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TS7809CZ C0G Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):35V
Voltage - Output (Min/Fixed):9V
Voltage - Output (Max):-
Voltage Dropout (Max):2V @ 1A (Typ)
Current - Output:1A
Current - Quiescent (Iq):8 mA
Current - Supply (Max):500 µA
PSRR:72dB (120Hz)
Control Features:Current Limit
Protection Features:Over Temperature
Operating Temperature:0°C ~ 125°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3
Supplier Device Package:TO-220
