LD6806F/23H,115

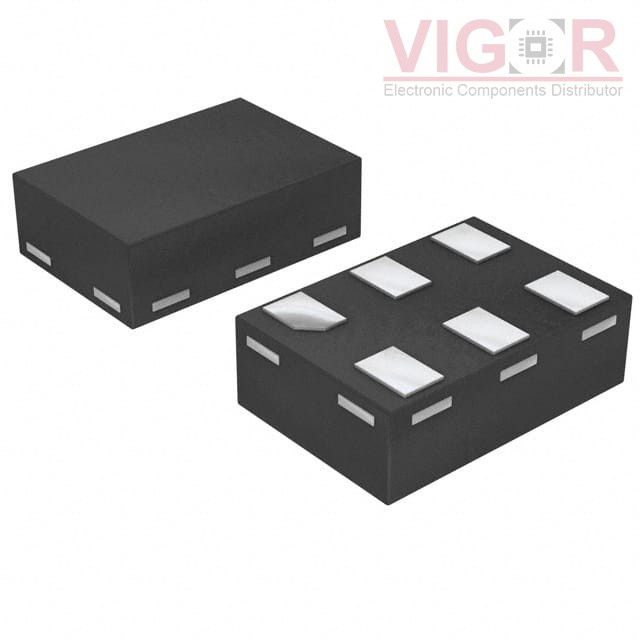

Image is for reference,
please contact us to get the real picture

Part No :: LD6806F/23H,115

Manufacturer: NXP Semiconductors

Description: IC REG LINEAR 2.3V 200MA 6XSON

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: LD6806F/23H,115 PDF

Availability: 0 pieces

Unit Price: ~~$0.12000~~

Current price of LD6806F/23H,115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LD6806F/23H,115 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	2.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.13V @ 200mA
Current - Output:	200mA
Current - Quiescent (Iq):	100 µA
Current - Supply (Max):	250 µA
PSRR:	55dB (1kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	6-XFDFN
Supplier Device Package:	6-XSON, SOT886 (1.45x1)

Please confirm the specifications of the products when ordering.
