S-814A54AMC-BDST2G

S-814A54AMC-BDST2G

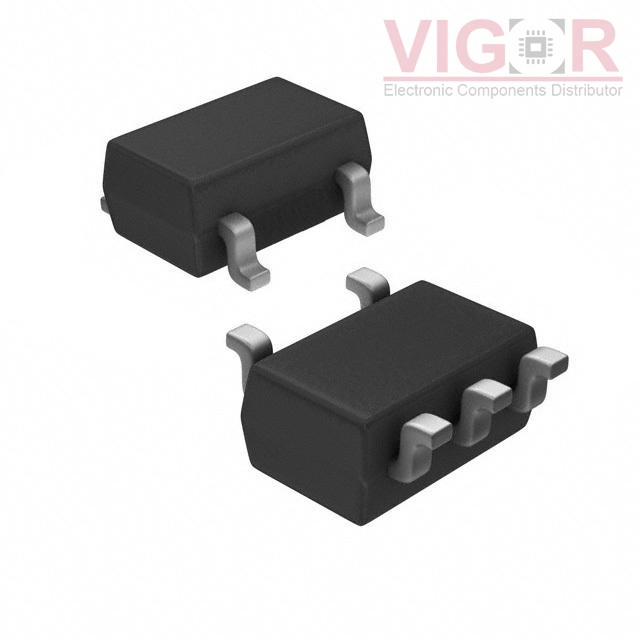

Image is for reference,
please contact us to get the real picture

Part No :

S-814A54AMC-BDST2G

Manufacturer
ABLIC U.S.A. Inc.
Description
IC REG LINEAR 5.4V 180MA SOT23-5
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
S-814A54AMC-BDST2G PDF
Availability
1223 pieces
Unit Price
$0.31970

Current price of S-814A54AMC-BDST2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S-814A54AMC-BDST2G Specifications
Type Description
Series:S-814
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):10V
Voltage - Output (Min/Fixed):5.4V
Voltage - Output (Max):-
Voltage Dropout (Max):0.21V @ 60mA
Current - Output:180mA
Current - Quiescent (Iq):500 nA
Current - Supply (Max):40 µA
PSRR:45dB (100Hz)
Control Features:Enable
Protection Features:Short Circuit
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:SOT-23-5
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MIC5203-3.3YM4

MIC5203-3.3YM4

IC REG LINEAR MICROCAP 80MA LDO
HOT TPS7350QPWRG4

TPS7350QPWRG4

IC REG LINEAR 5V 500MA 20TSSOP

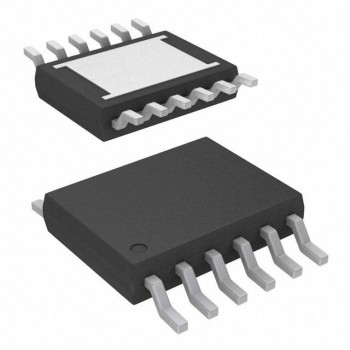

HOT LT3066EMSE#TRPBF
