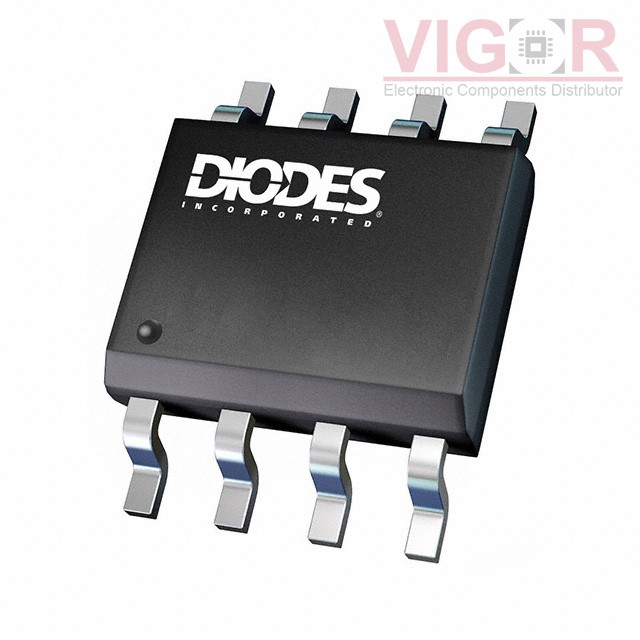

AP2204MP-ADJTRG1

AP2204MP-ADJTRG1

Image is for reference,
please contact us to get the real picture

Part No :

AP2204MP-ADJTRG1

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC REG LINEAR POS ADJ 150MA 8SO
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
AP2204MP-ADJTRG1 PDF
Availability
1974 pieces
Unit Price
$0.53000

Current price of AP2204MP-ADJTRG1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP2204MP-ADJTRG1 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):24V
Voltage - Output (Min/Fixed):1.24V
Voltage - Output (Max):22V
Voltage Dropout (Max):0.5V @ 150mA
Current - Output:150mA
Current - Quiescent (Iq):50 µA
Current - Supply (Max):2.5 mA
PSRR:60dB (100Hz ~ 1kHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:8-SO-EP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LK115D50-TR

LK115D50-TR

IC REG LINEAR 5V 100MA 8SO

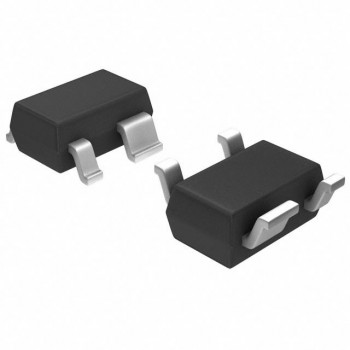

HOT S-1323B35NB-N8UTFU

S-1323B35NB-N8UTFU

IC REG LINEAR 3.5V 150MA SC82AB

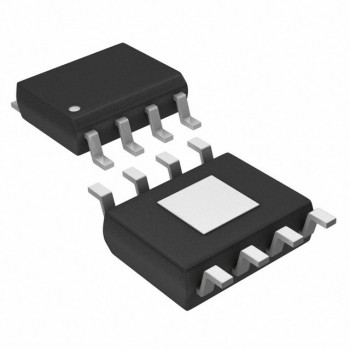

HOT TLE4254EJAXUMA2
