S-814A22AMC-BCMT2G

S-814A22AMC-BCMT2G

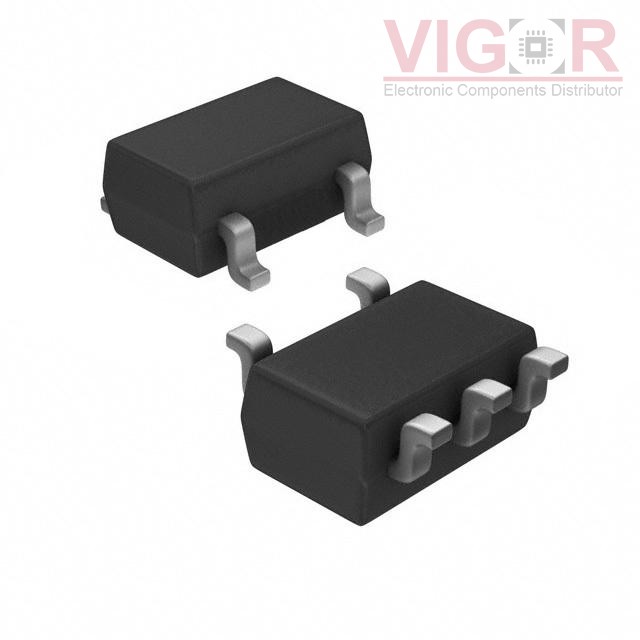

Image is for reference,
please contact us to get the real picture

Part No :

S-814A22AMC-BCMT2G

Manufacturer
ABLIC U.S.A. Inc.
Description
IC REG LINEAR 2.2V 100MA SOT23-5
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
S-814A22AMC-BCMT2G PDF
Availability
2493 pieces
Unit Price
$0.31970

Current price of S-814A22AMC-BCMT2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S-814A22AMC-BCMT2G Specifications
Type Description
Series:S-814
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):10V
Voltage - Output (Min/Fixed):2.2V
Voltage - Output (Max):-
Voltage Dropout (Max):0.87V @ 60mA
Current - Output:100mA
Current - Quiescent (Iq):500 nA
Current - Supply (Max):40 µA
PSRR:45dB (100Hz)
Control Features:Enable
Protection Features:Short Circuit
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:SOT-23-5
