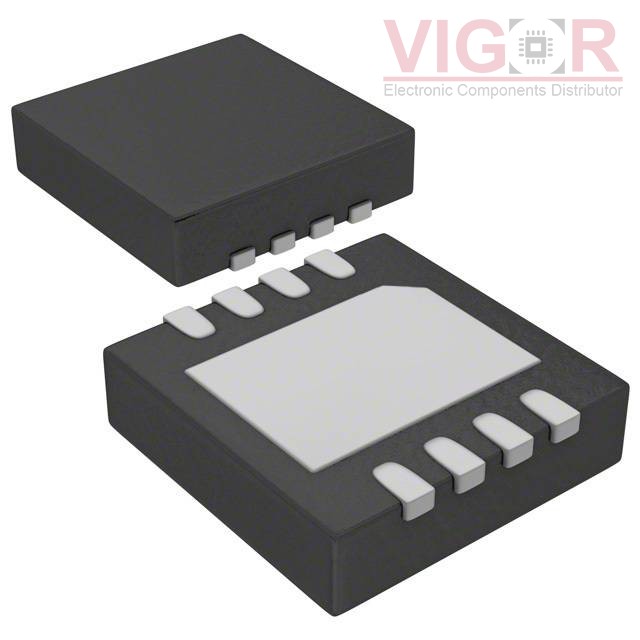

ADM7151ACPZ-02-R7

ADM7151ACPZ-02-R7

Image is for reference,
please contact us to get the real picture

Part No :

ADM7151ACPZ-02-R7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC REG LIN POS ADJ 800MA 8LFCSP
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
ADM7151ACPZ-02-R7 PDF
Availability
1071 pieces
Unit Price
$9.18000

Current price of ADM7151ACPZ-02-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADM7151ACPZ-02-R7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):16V
Voltage - Output (Min/Fixed):1.5V
Voltage - Output (Max):4V
Voltage Dropout (Max):1.2V @ 800mA
Current - Output:800mA
Current - Quiescent (Iq):7 mA
Current - Supply (Max):12 mA
PSRR:94dB ~ 50dB (1kHz ~ 1MHz)
Control Features:Enable
Protection Features:Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-WFDFN Exposed Pad, CSP
Supplier Device Package:8-LFCSP-WD (3x3)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT NCP502SQ36T1G

NCP502SQ36T1G

IC REG LINEAR 3.6V 80MA SC88A
HOT LT1763IS8-1.8#TRPBF

LT1763IS8-1.8#TRPBF

IC REG LINEAR 1.8V 500MA 8SOIC

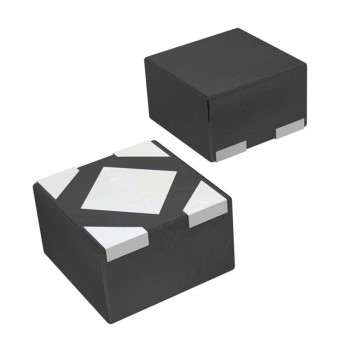

HOT NCP134AMX080TCG
