S-814A56AUC-BDUT2G

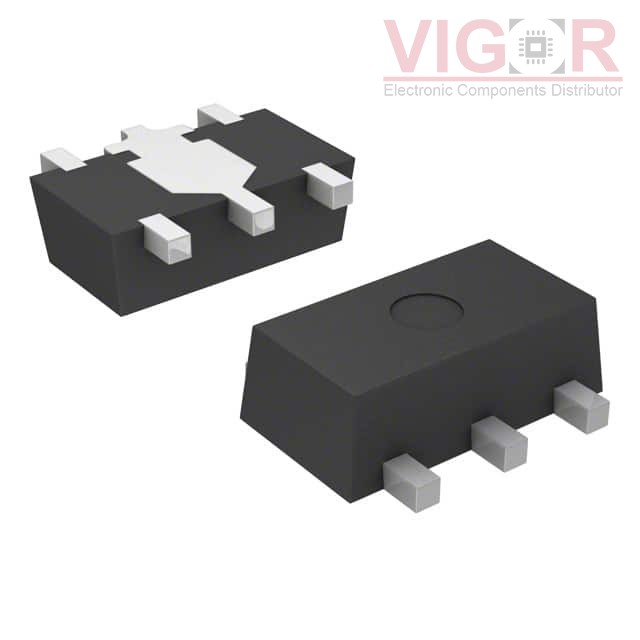

Image is for reference,
please contact us to get the real picture

Part No :: S-814A56AUC-BDUT2G

Manufacturer: ABLIC U.S.A. Inc.

Description: IC REG LINEAR 5.6V 180MA SOT89-5

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: S-814A56AUC-BDUT2G PDF

Availability: 1679 pieces

Unit Price: ~~$0.35277~~

Current price of S-814A56AUC-BDUT2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S-814A56AUC-BDUT2G Specifications

Type	Description
Series:	S-814
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	10V
Voltage - Output (Min/Fixed):	5.6V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.2V @ 60mA
Current - Output:	180mA
Current - Quiescent (Iq):	500 nA
Current - Supply (Max):	40 µA
PSRR:	45dB (100Hz)
Control Features:	Enable
Protection Features:	Short Circuit
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	SOT-89-5/6
Supplier Device Package:	SOT-89-5

Please confirm the specifications of the products when ordering.
