Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of LP590729QDQNRQ1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | Automotive, AEC-Q100 |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Output Configuration: | Positive |
Output Type: | Fixed |
Number of Regulators: | 1 |
Voltage - Input (Max): | 5.5V |
Voltage - Output (Min/Fixed): | 2.9V |
Voltage - Output (Max): | - |
Voltage Dropout (Max): | 0.25V @ 250mA |
Current - Output: | 250mA |
Current - Quiescent (Iq): | 25 µA |
Current - Supply (Max): | 425 µA |
PSRR: | 90dB ~ 60dB (100Hz ~ 100kHz) |
Control Features: | Enable |
Protection Features: | Over Current, Over Temperature, Short Circuit |
Operating Temperature: | -40°C ~ 125°C (TJ) |
Mounting Type: | Surface Mount |
Package / Case: | 4-XDFN Exposed Pad |
Supplier Device Package: | 4-X2SON (1x1) |

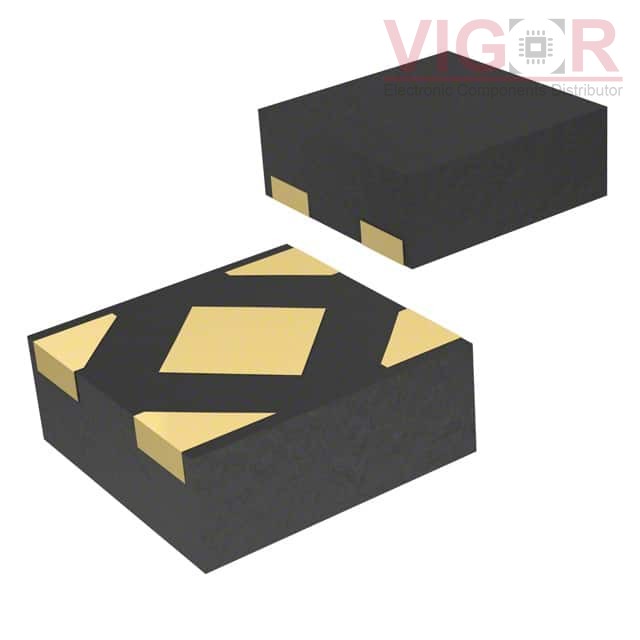

IC REG LINEAR 2.9V 250MA 4X2SON
