AP7315-23FS4-7B

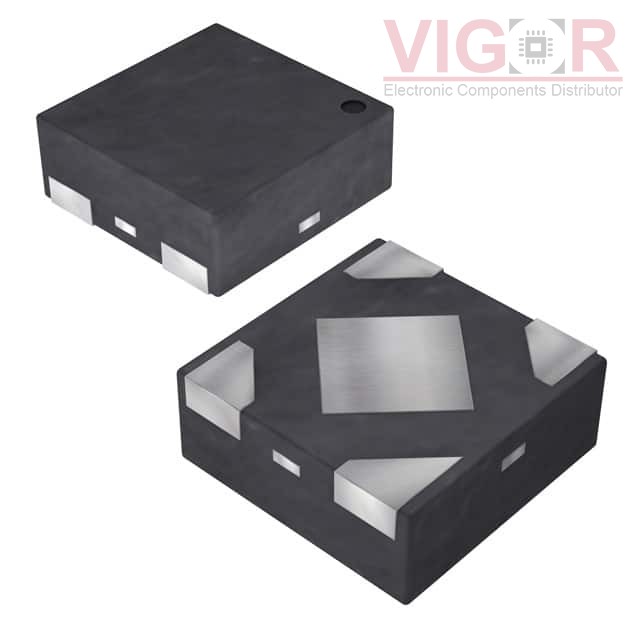

Image is for reference,
please contact us to get the real picture

Part No :: AP7315-23FS4-7B

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IC REG LINEAR 2.3V 150MA 4DFN

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: AP7315-23FS4-7B PDF

Availability: 1768 pieces

Unit Price: ~~$0.13595~~

Current price of AP7315-23FS4-7B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP7315-23FS4-7B Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.25V
Voltage - Output (Min/Fixed):	2.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.38V @ 150mA
Current - Output:	150mA
Current - Quiescent (Iq):	60 µA
Current - Supply (Max):	100 µA
PSRR:	75dB (1kHz)
Control Features:	-
Protection Features:	Over Current
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	4-XDFN Exposed Pad
Supplier Device Package:	X2-DFN1010-4

Please confirm the specifications of the products when ordering.
