L4947

L4947

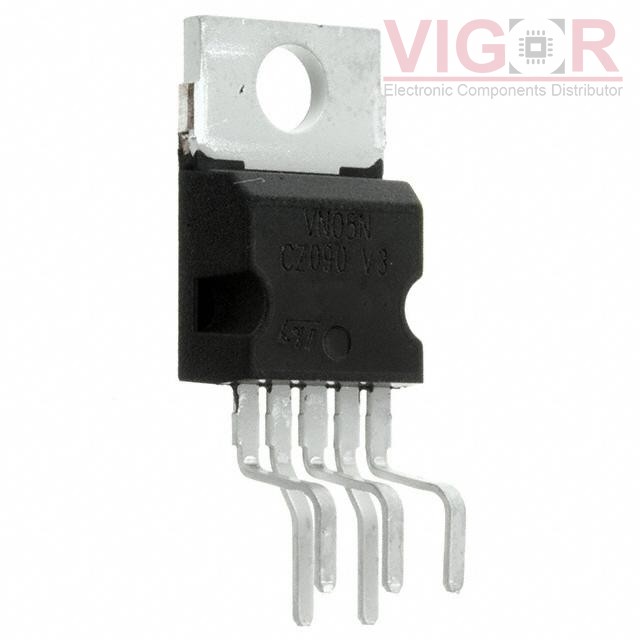

Image is for reference,
please contact us to get the real picture

Part No :

L4947

Manufacturer
STMicroelectronics
Description
IC REG LIN 5V 500MA 5PENTAWATT
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
L4947 PDF
Availability
1134 pieces
Unit Price
$0.00000

Current price of L4947 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L4947 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):26V
Voltage - Output (Min/Fixed):5V
Voltage - Output (Max):-
Voltage Dropout (Max):0.75V @ 500mA
Current - Output:500mA
Current - Quiescent (Iq):13 mA
Current - Supply (Max):180 mA
PSRR:60dB (120Hz)
Control Features:Reset
Protection Features:Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Package / Case:Pentawatt-5 (Vertical, Bent and Staggered Leads)
Supplier Device Package:5-PENTAWATT
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MIC5256-2.5BM5-TR

MIC5256-2.5BM5-TR

IC REG LINEAR 2.5V 150MA SOT23-5
HOT LD29300P2M33R

LD29300P2M33R

IC REG LINEAR 3.3V 3A P2PAK-4

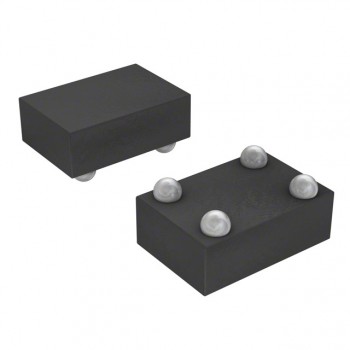

HOT S-L2985B33-H4T1
