SG7815K-JAN

SG7815K-JAN

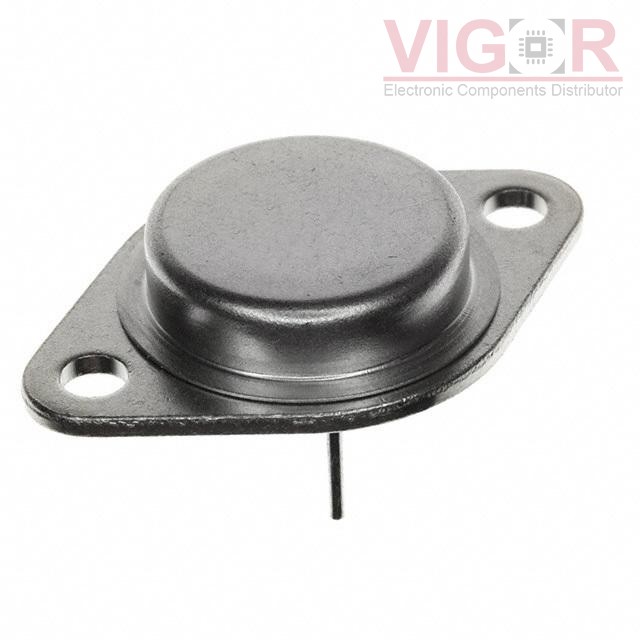

Image is for reference,
please contact us to get the real picture

Part No :

SG7815K-JAN

Manufacturer
Roving Networks / Microchip Technology
Description
IC REG LINEAR 15V 1.5A TO3
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
SG7815K-JAN PDF
Availability
4341 pieces
Unit Price
$0.00000

Current price of SG7815K-JAN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG7815K-JAN Specifications
Type Description
Series:Military, MIL-STD-883
Package:Tray
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):35V
Voltage - Output (Min/Fixed):15V
Voltage - Output (Max):-
Voltage Dropout (Max):2.5V @ 1A
Current - Output:1.5A
Current - Quiescent (Iq):7 mA
Current - Supply (Max):-
PSRR:60dB (120Hz)
Control Features:-
Protection Features:Over Current, Over Temperature
Operating Temperature:-55°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-3
