AN7715SP

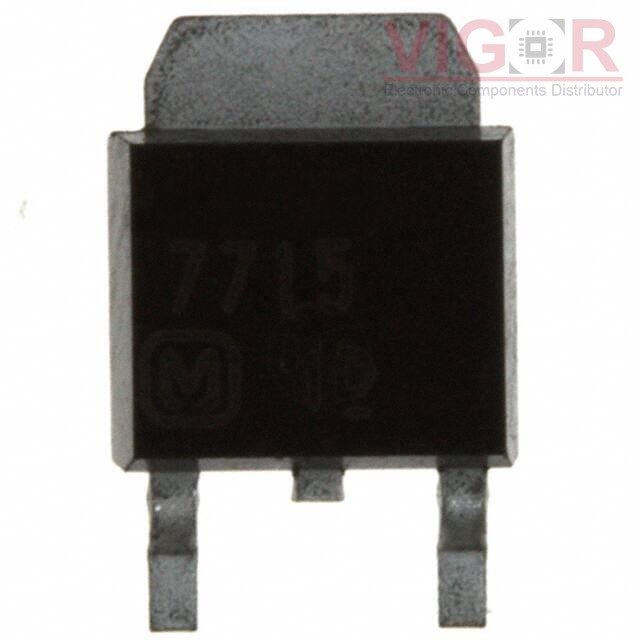

Image is for reference,
please contact us to get the real picture

Part No :: AN7715SP

Manufacturer: Panasonic

Description: IC REG LINEAR 15V 1.2A SP3SUA

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: AN7715SP PDF

Availability: 1966 pieces

Unit Price: ~~$0.00000~~

Current price of AN7715SP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AN7715SP Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	26.5V
Voltage - Output (Min/Fixed):	15V
Voltage - Output (Max):	-
Voltage Dropout (Max):	-
Current - Output:	1.2A
Current - Quiescent (Iq):	5 mA
Current - Supply (Max):	-
PSRR:	60dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	25°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	SP-3SUA

Please confirm the specifications of the products when ordering.
