L4947PD013TR

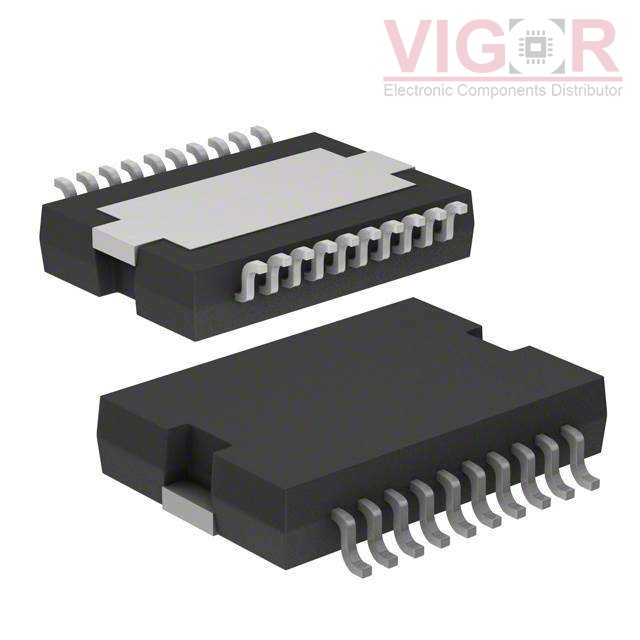

Image is for reference,
please contact us to get the real picture

Part No :: L4947PD013TR

Manufacturer: STMicroelectronics

Description: IC REG LINEAR 5V 500MA POWERSO20

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Aug 10 - Aug 14 2025

DataSheet: L4947PD013TR PDF

Availability: 1429 pieces

Unit Price: ~~$0.00000~~

Current price of L4947PD013TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L4947PD013TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	26V
Voltage - Output (Min/Fixed):	5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.75V @ 500mA
Current - Output:	500mA
Current - Quiescent (Iq):	13 mA
Current - Supply (Max):	180 mA
PSRR:	60dB (120Hz)
Control Features:	Reset
Protection Features:	Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package:	PowerSO-20

Please confirm the specifications of the products when ordering.
