LM2940LDX-5.0/NOPB

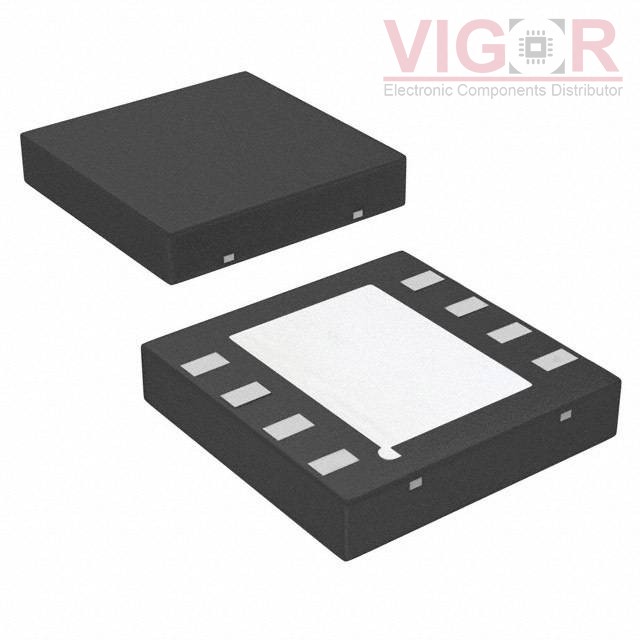

Image is for reference,
please contact us to get the real picture

Part No :: LM2940LDX-5.0/NOPB

Manufacturer: Texas Instruments

Description: IC REG LINEAR 5V 1A 8WSON

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: LM2940LDX-5.0/NOPB PDF

Availability: 3298 pieces

Unit Price: ~~$0.00000~~

Current price of LM2940LDX-5.0/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LM2940LDX-5.0/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	26V
Voltage - Output (Min/Fixed):	5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	1V @ 1A
Current - Output:	1A
Current - Quiescent (Iq):	10 mA
Current - Supply (Max):	15 mA
PSRR:	64dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-WDFN Exposed Pad
Supplier Device Package:	8-WSON (4x4)

Please confirm the specifications of the products when ordering.
