L4909

L4909

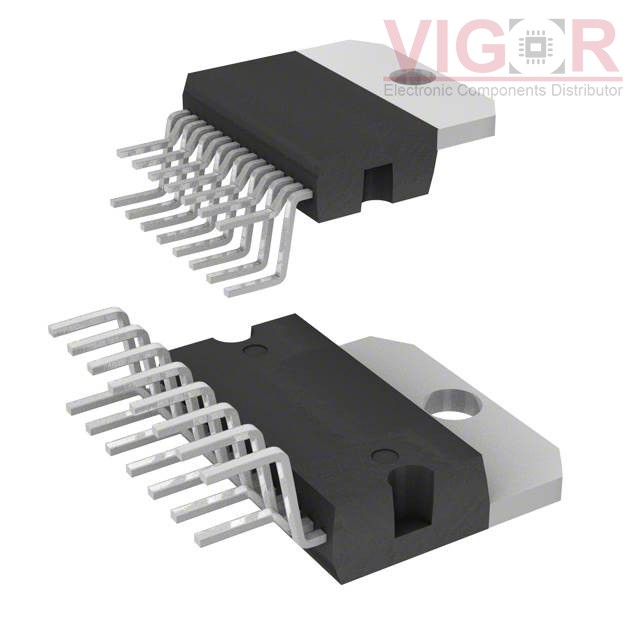

Image is for reference,
please contact us to get the real picture

Part No :

L4909

Manufacturer
STMicroelectronics
Description
IC REG LIN POS ADJ 15MULTIWATT
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
L4909 PDF
Availability
2949 pieces
Unit Price
$0.00000

Current price of L4909 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L4909 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:3
Voltage - Input (Max):40V
Voltage - Output (Min/Fixed):5V
Voltage - Output (Max):12V
Voltage Dropout (Max):2.2V @ 500mA, 2.2V @ 500mA, 2.2V @ 500mA
Current - Output:1.2A, 1.2A, 1.2A
Current - Quiescent (Iq):11 mA
Current - Supply (Max):29 mA
PSRR:60dB (120Hz ~ 1kHz)
Control Features:Enable, Trigger
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:0°C ~ 70°C
Mounting Type:Through Hole
Package / Case:Multiwatt-15 (Vertical, Bent and Staggered Leads)
Supplier Device Package:15-Multiwatt
