CS8156YT5G

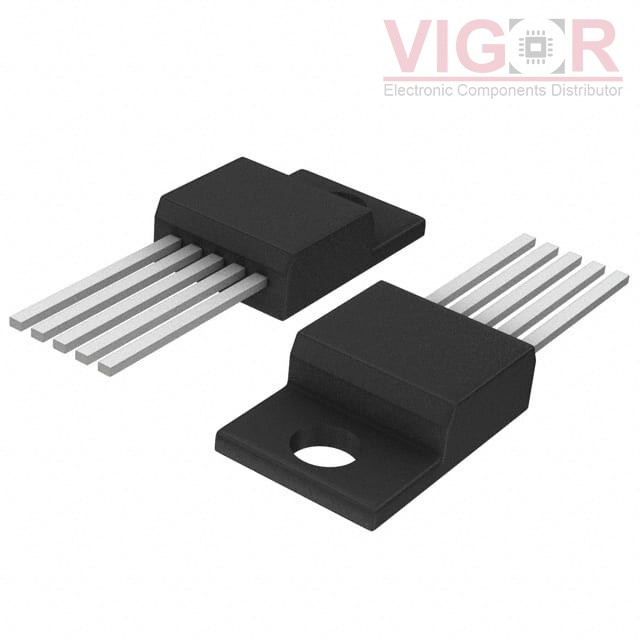

Image is for reference,
please contact us to get the real picture

Part No :: CS8156YT5G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC REG LINEAR 12V/5V TO220-5

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: CS8156YT5G PDF

Availability: 9310 pieces

Unit Price: ~~$0.00000~~

Current price of CS8156YT5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS8156YT5G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	2
Voltage - Input (Max):	26V
Voltage - Output (Min/Fixed):	12V, 5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	1V @ 750mA, 0.6V @ 100mA
Current - Output:	750mA, 100mA
Current - Quiescent (Iq):	125 mA
Current - Supply (Max):	250 mA
PSRR:	70dB (120Hz)
Control Features:	Enable
Protection Features:	Over Temperature, Over Voltage, Short Circuit
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-220-5
Supplier Device Package:	TO-220-5

Please confirm the specifications of the products when ordering.
