NJM2396F12

NJM2396F12

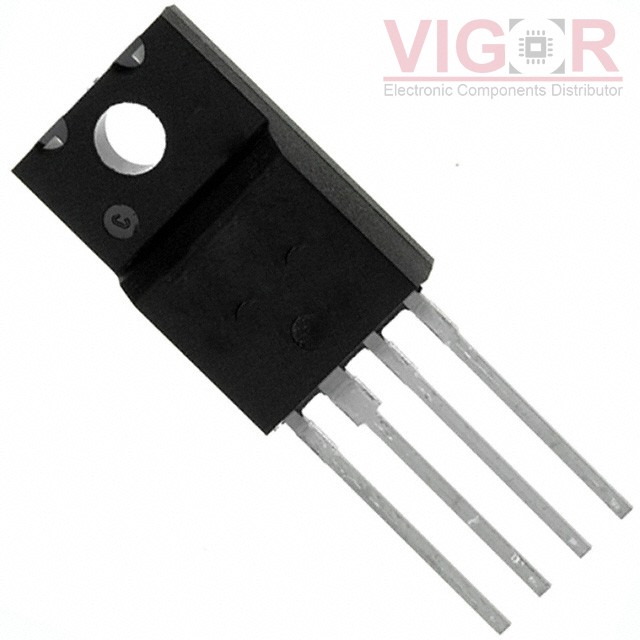

Image is for reference,
please contact us to get the real picture

Part No :

NJM2396F12

Manufacturer
New Japan Radio (NJR)
Description
IC REG LINEAR 12V 1.5A TO220F-4
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
NJM2396F12 PDF
Availability
148 pieces
Unit Price
$0.00000

Current price of NJM2396F12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NJM2396F12 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):35V
Voltage - Output (Min/Fixed):12V
Voltage - Output (Max):-
Voltage Dropout (Max):0.5V @ 500mA
Current - Output:1.5A
Current - Quiescent (Iq):5 mA
Current - Supply (Max):-
PSRR:58dB (120Hz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Over Voltage
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:TO-220-4 Full Pack
Supplier Device Package:TO-220F-4
