ISO7720FDWVR

ISO7720FDWVR

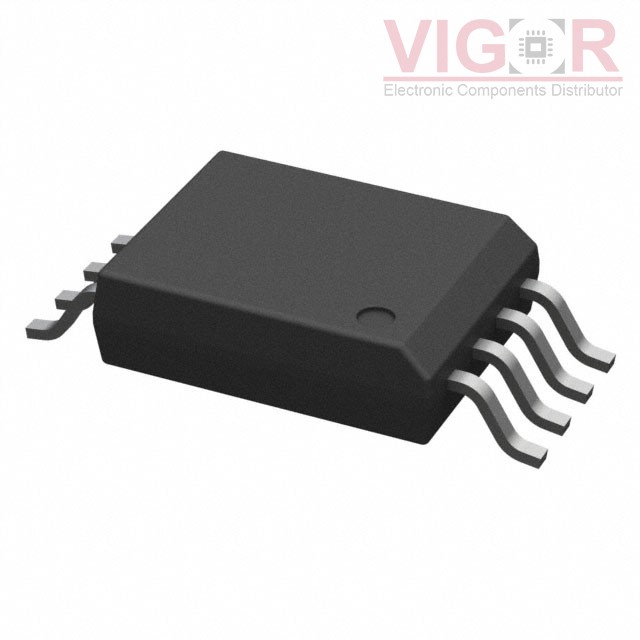

Image is for reference,
please contact us to get the real picture

Part No :

ISO7720FDWVR

Manufacturer
Texas Instruments
Description
DGTL ISO 5000VRMS 2CH GP 8SOIC
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
ISO7720FDWVR PDF
Availability
4 pieces
Unit Price
$3.10000

Current price of ISO7720FDWVR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISO7720FDWVR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Channel Type:Unidirectional
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):85kV/µs
Data Rate:100Mbps
Propagation Delay tpLH / tpHL (Max):16ns, 16ns
Pulse Width Distortion (Max):4.9ns
Rise / Fall Time (Typ):1.8ns, 1.9ns
Voltage - Supply:2.25V ~ 5.5V
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:8-SOIC
