ADUM7643ARQZ

ADUM7643ARQZ

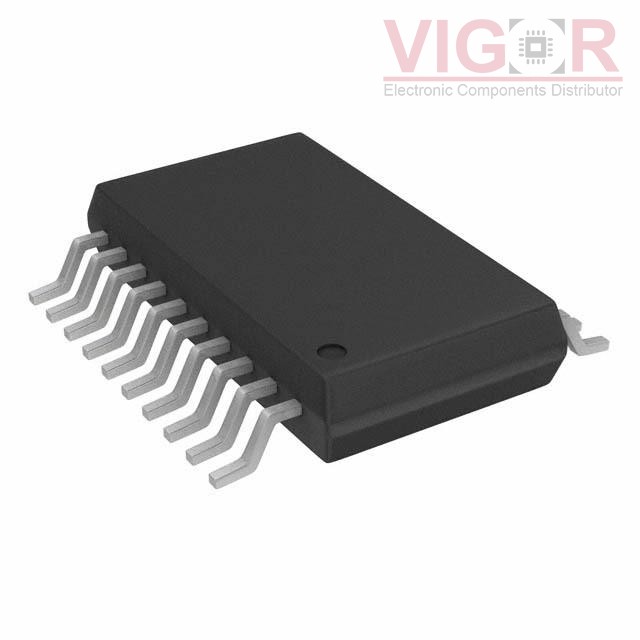

Image is for reference,
please contact us to get the real picture

Part No :

ADUM7643ARQZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
DGTL ISO 1000VRMS 6CH GP 20QSOP
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
ADUM7643ARQZ PDF
Availability
462 pieces
Unit Price
$6.10000

Current price of ADUM7643ARQZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADUM7643ARQZ Specifications
Type Description
Series:iCoupler®
Package:Tube
Part Status:Active
Technology:Magnetic Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:6
Inputs - Side 1/Side 2:3/3
Channel Type:Unidirectional
Voltage - Isolation:1000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Data Rate:1Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Pulse Width Distortion (Max):25ns
Rise / Fall Time (Typ):2ns, 2ns
Voltage - Supply:3V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:20-SSOP (0.154", 3.90mm Width)
Supplier Device Package:20-QSOP
