ISO7763FDBQR

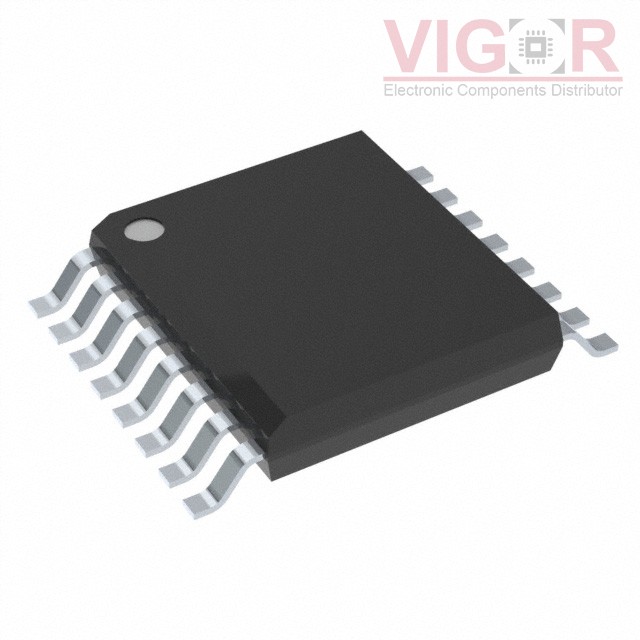

Image is for reference,
please contact us to get the real picture

Part No :: ISO7763FDBQR

Manufacturer: Texas Instruments

Description: DGTL ISO 3000VRMS 6CH GP 16SSOP

Catalog: Digital Isolators

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: ISO7763FDBQR PDF

Availability: 2703 pieces

Unit Price: ~~$4.16000~~

Current price of ISO7763FDBQR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISO7763FDBQR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Capacitive Coupling
Type:	General Purpose
Isolated Power:	No
Number of Channels:	6
Inputs - Side 1/Side 2:	3/3
Channel Type:	Unidirectional
Voltage - Isolation:	3000Vrms
Common Mode Transient Immunity (Min):	85kV/µs
Data Rate:	100Mbps
Propagation Delay tpLH / tpHL (Max):	16ns, 16ns
Pulse Width Distortion (Max):	4.9ns
Rise / Fall Time (Typ):	1.1ns, 1.4ns
Voltage - Supply:	2.25V ~ 5.5V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:	16-SSOP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
