ISO7741QDWWQ1

ISO7741QDWWQ1

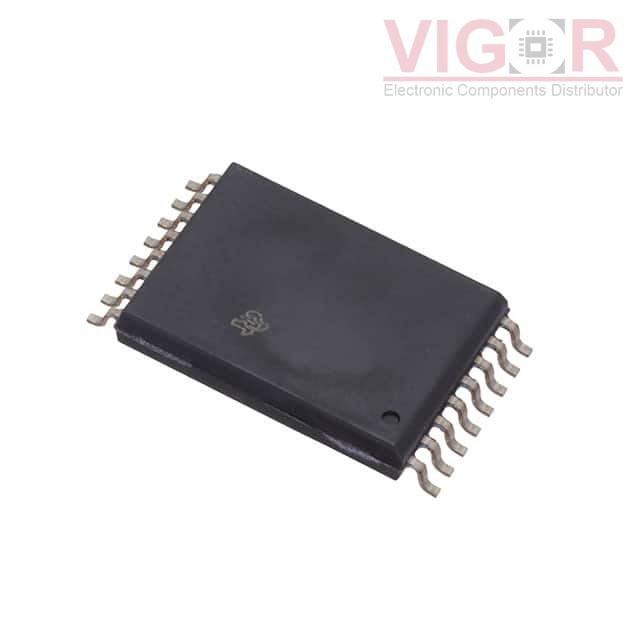

Image is for reference,
please contact us to get the real picture

Part No :

ISO7741QDWWQ1

Manufacturer
Texas Instruments
Description
AUTO DGT ISO 4CH WIDE DWW PKG
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
ISO7741QDWWQ1 PDF
Availability
1049 pieces
Unit Price
$6.19000

Current price of ISO7741QDWWQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISO7741QDWWQ1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tube
Part Status:Active
Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:4
Inputs - Side 1/Side 2:3/1
Channel Type:Unidirectional
Voltage - Isolation:5700Vrms
Common Mode Transient Immunity (Min):85kV/µs
Data Rate:100Mbps
Propagation Delay tpLH / tpHL (Max):16ns, 16ns
Pulse Width Distortion (Max):4.9ns
Rise / Fall Time (Typ):2.4ns, 2.4ns
Voltage - Supply:2.25V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.551", 14.00mm Width)
Supplier Device Package:16-SOIC
