ADUM5412BRSZ

ADUM5412BRSZ

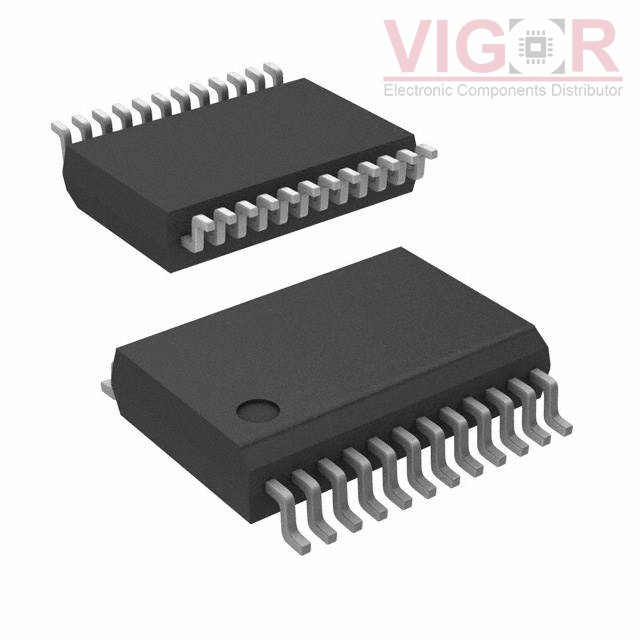

Image is for reference,
please contact us to get the real picture

Part No :

ADUM5412BRSZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
DGTL ISO 2500VRMS 4CH GP 24SSOP
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
ADUM5412BRSZ PDF
Availability
147 pieces
Unit Price
$8.70000

Current price of ADUM5412BRSZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADUM5412BRSZ Specifications
Type Description
Series:iCoupler®
Package:Tube
Part Status:Active
Technology:Magnetic Coupling
Type:General Purpose
Isolated Power:Yes
Number of Channels:4
Inputs - Side 1/Side 2:2/2
Channel Type:Unidirectional
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):75kV/µs
Data Rate:150Mbps
Propagation Delay tpLH / tpHL (Max):13ns, 13ns
Pulse Width Distortion (Max):3ns
Rise / Fall Time (Typ):2.5ns, 2.5ns
Voltage - Supply:1.7V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:24-SSOP (0.209", 5.30mm Width)
Supplier Device Package:24-SSOP
