ADUM7642CRQZ

ADUM7642CRQZ

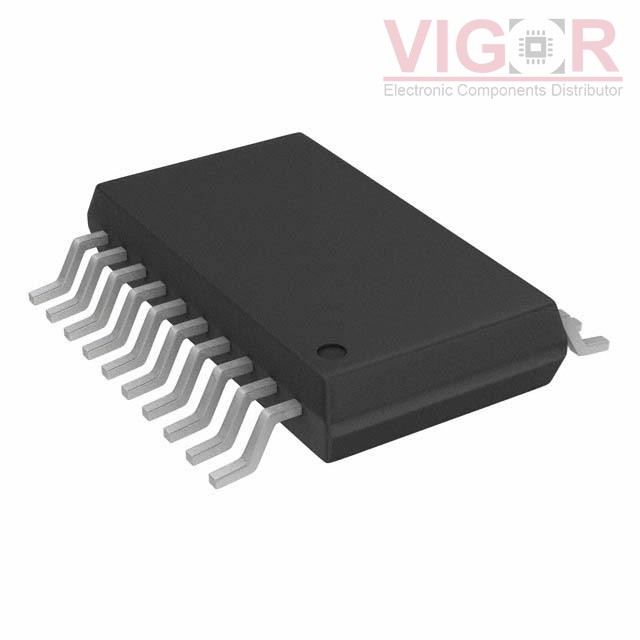

Image is for reference,
please contact us to get the real picture

Part No :

ADUM7642CRQZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
DGTL ISO 1000VRMS 6CH GP 20QSOP
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
ADUM7642CRQZ PDF
Availability
1322 pieces
Unit Price
$7.87000

Current price of ADUM7642CRQZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADUM7642CRQZ Specifications
Type Description
Series:iCoupler®
Package:Tube
Part Status:Active
Technology:Magnetic Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:6
Inputs - Side 1/Side 2:4/2
Channel Type:Unidirectional
Voltage - Isolation:1000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Data Rate:25Mbps
Propagation Delay tpLH / tpHL (Max):50ns, 50ns
Pulse Width Distortion (Max):6ns
Rise / Fall Time (Typ):2ns, 2ns
Voltage - Supply:3V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:20-SSOP (0.154", 3.90mm Width)
Supplier Device Package:20-QSOP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
