AD261BND-0

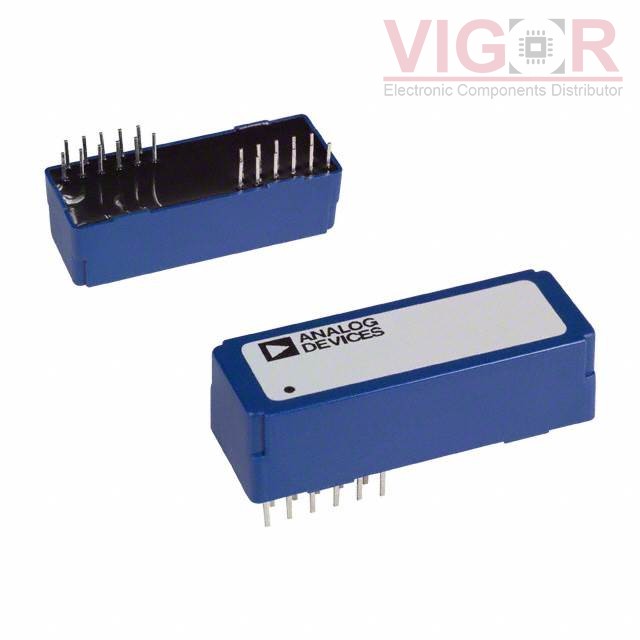

Image is for reference,
please contact us to get the real picture

Part No :: AD261BND-0

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: DGTL ISO 3500VRMS 5CH GP 22DIP

Catalog: Digital Isolators

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: AD261BND-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AD261BND-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AD261BND-0 Specifications

Type	Description
Series:	IsoLogic™
Package:	Tube
Part Status:	Obsolete
Technology:	Magnetic Coupling
Type:	General Purpose
Isolated Power:	No
Number of Channels:	5
Inputs - Side 1/Side 2:	0/5
Channel Type:	Unidirectional
Voltage - Isolation:	3500Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	25ns, 25ns
Pulse Width Distortion (Max):	-
Rise / Fall Time (Typ):	-
Voltage - Supply:	4V ~ 5.75V
Operating Temperature:	-25°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	22-DIP Module
Supplier Device Package:	22-PDIP

Please confirm the specifications of the products when ordering.
