SI8274GB1-IMR

SI8274GB1-IMR

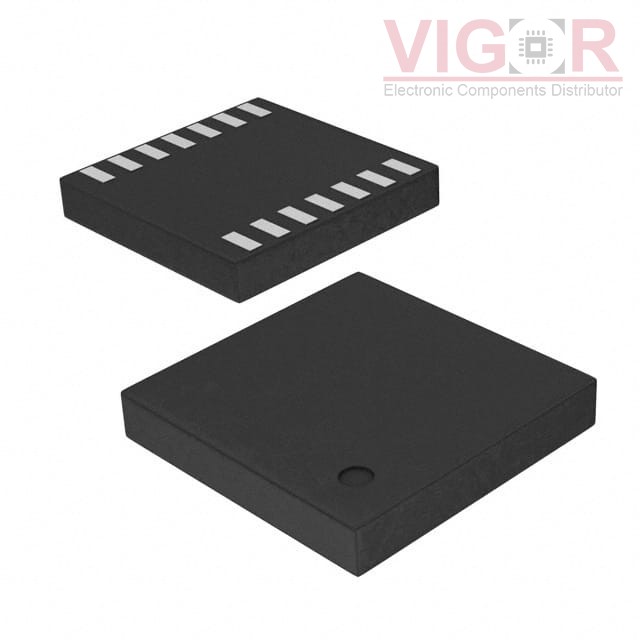

Image is for reference,
please contact us to get the real picture

Part No :

SI8274GB1-IMR

Manufacturer
Silicon Labs
Description
DGTL ISO 2.5KV GATE DRVR 14LGA
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SI8274GB1-IMR PDF
Availability
0 pieces
Unit Price
$2.67454

Current price of SI8274GB1-IMR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SI8274GB1-IMR Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Technology:Capacitive Coupling
Number of Channels:2
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):150kV/µs
Propagation Delay tpLH / tpHL (Max):75ns, 60ns
Pulse Width Distortion (Max):19ns
Rise / Fall Time (Typ):10.5ns, 13.3ns
Current - Output High, Low:1.8A, 4A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:4.2V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:14-VFLGA
Supplier Device Package:14-LGA (5x5)
Approval Agency:CQC, CSA, UR, VDE
